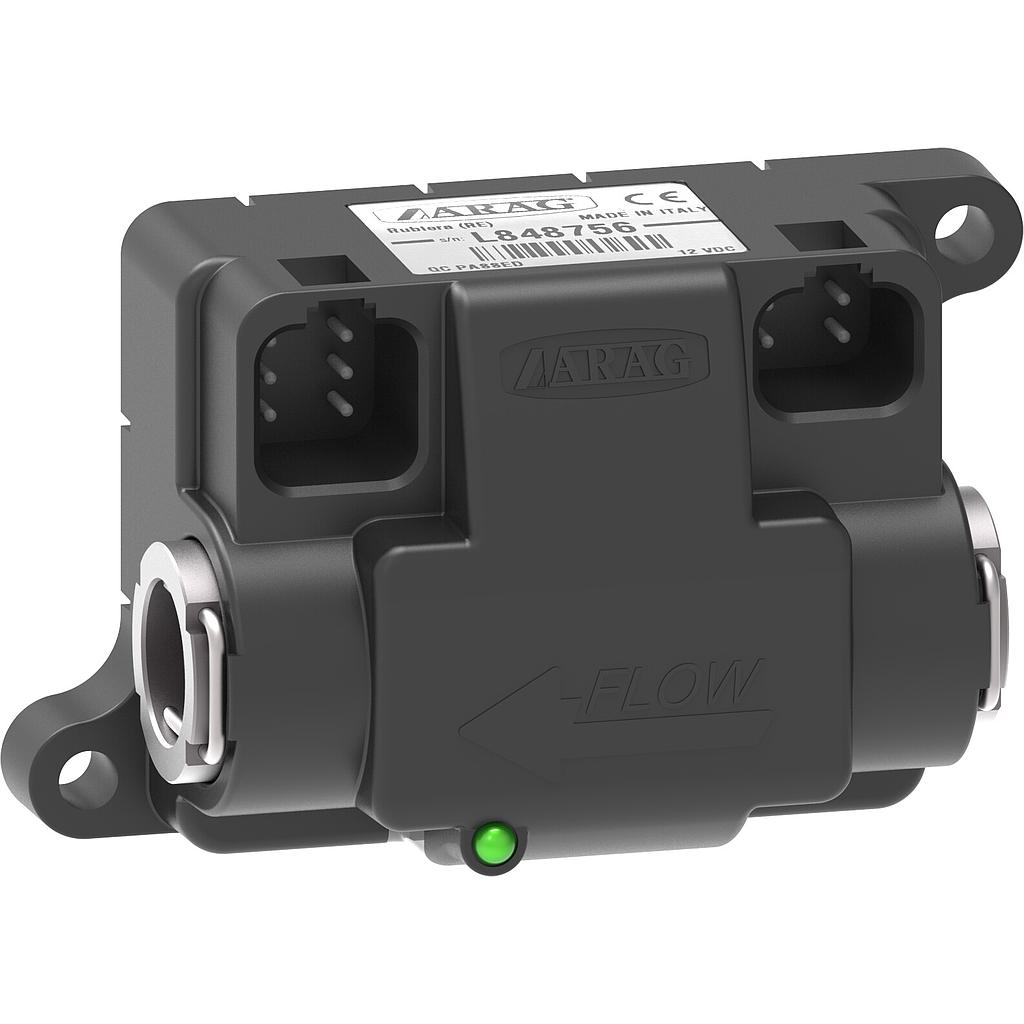

Arag ORION 3 PLUS Electro-magnetic flow meter with fork coupling (0.3 ÷ 12 l/min)
Manufacturer: Arag Model: ORION 3 PLUS P/N: 46204G - Contact
Specification
Code: 46204G
Fork Coupling (T): T1 F
Flow rate: 0.3 ÷ 12 l/min
MAX Pressure: 10 bar
Internal Passage: DN4 mm
Pulses: 10000 pls/l
Type: PPFV
Details
INTRODUCTION
ORION 3 PLUS electro-magnetic flow meter with fork coupling
Orion 3 PLUS is an electromagnetic flowmeter designed to manage liquid distribution systems on seeders.
Several flowmeters can be connected via the CAN-Bus port to monitor all seeding lines.
Each Orion 3 can control a valve to manage the output flowrate.
TECHNICAL FEATURES
Integrated valve control (only mod. PLUS).
Output only by flowing fluid.
Operating status LED.
Pulse output with frequency proportional to the flowrate.
