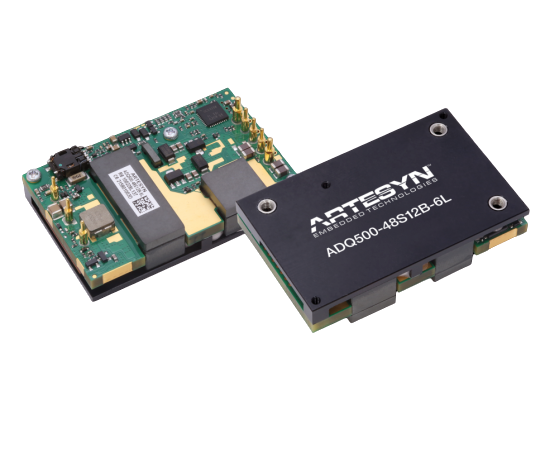

Artesyn ADQ500-48S12-6LI Quarter-Brick Isolated DC-DC Converter (12V; 42A; 500W)
Manufacturer: Artesyn Model: ADQ500-48S12-6LI - Contact
Input voltage: 36 - 75 Vdc
I/O isolation: 1500 Vdc
Efficiency (48 Vin, 25 °C ambient): 94.5% @ 100% load (95.5% @ 50% load)
Output voltage: 12 V nominal set point
Output voltage regulation:
- Line regulation: 20 mV typical
- Load regulation: 20 mV typical
- Temperature regulation: 0.002% / °C typical
Output current maximum: 42 A
Noise/ripple: 200 mVpp
500 W continuous power
Operating ambient temperature range: -40 °C to +85 °C
Storage temperature: -55 °C to +105 °C
