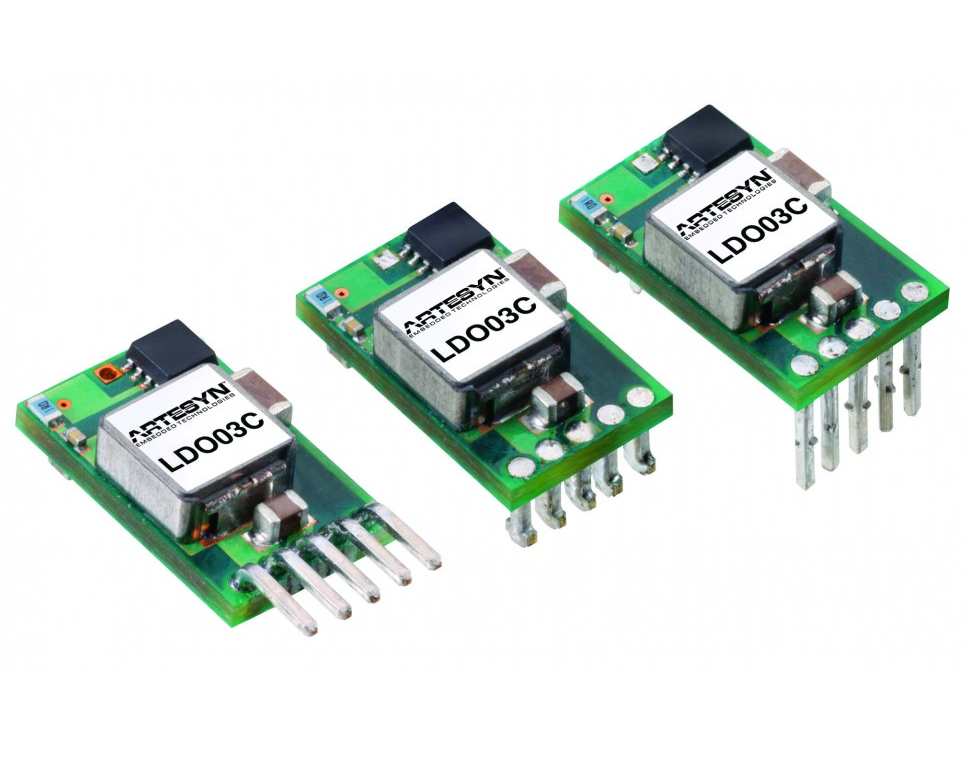

Artesyn LDO03C-005W05-VJ 15 Watt Non-Isolated DC-DC Converter (3A; 5.1V; 15W)
Manufacturer: Artesyn Model: LDO03C-005W05-VJ - Contact
Input range: 3 - 13.8 Vdc
Input current (max.): 3 A @ lo max
Output Voltage: 0.59 - 5.1 V
Output Current (Min.): 0 A
Output Current (Max.): 3 A
Efficiency (Typical): 90 %
Line regulation: ±0.2%
Load Regulation: ±0.5%
Ripple and noise: 25 mV; Vin = 5 V, Vout = 2.5 V
Output setpoint accuracy: ±1.0%
Thermal performance:
Operating ambient -40 °C to +85 °C
Non-operating ambient -40 °C to +125 °C
Weight: 1.7 g (0.06 oz.)
