Artesyn PTH05030WAZT Non-Isolated / PoL 4.5-5.5Vin 3.6V 30A 1.370" x1.120"x0.354 | EMIN.COM.MM

NonIsolated DC/DC Converters
Artesyn PTH05030WAZT Non-Isolated / PoL 4.5-5.5Vin 3.6V 30A 1.370" x1.120"x0.354

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

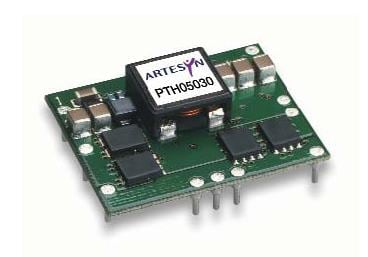

Product image

Artesyn PTH05030WAZT Non-Isolated / PoL 4.5-5.5Vin 3.6V 30A 1.370" x1.120"x0.354

ManufacturerArtesyn(View more products from this manufacturer)

ModelPTH05030WAZT

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Width: 28.5 mm (1.122 in)

Height: 9 mm (0.354 in)

Length: 35 mm (1.378 in)

Industry: Industrial

Efficiency: 94 %

Unit Weight: 10 g

Output Power: 108 W

Cooling Method: Convection

Mounting Style: SMD/SMT

Mechanical Style: Non-Isolated / POL

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 5.5 V

Input Voltage - Min: 4.5 V

Input Voltage, Nominal: 5 V

Output Current-Channel 1: 30 A

Output Voltage-Channel 1: 800 mV to 3.6 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
