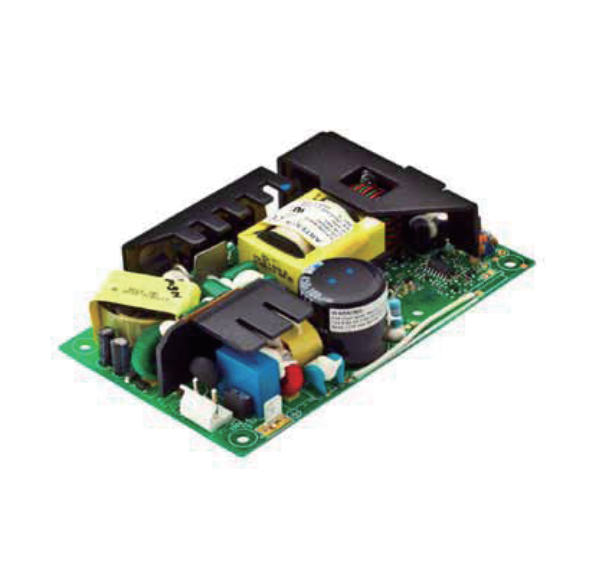

Artesyn TLP150N-99S24J Open Frame, Low Power AC-DC Power Supply (24V; 6.3A; 150W)

Input

Input voltage range: Universal Input 85 - 264 Vac

Input frequency range: 47 - 63 Hz

Input surge current: 264 Vac (cold start) 40 A max.

Input current:

120 Vac @ 150 W: 1.8 A rms

230 Vac @ 150 W: 0.8 A rms

Output

Adjustment range: ± 10%

Total regulation (line and load)

Main output: ± 3%

Auxiliary outputs: ± 5%

Fan output: ± 10%

Turn-on delay: @120 Vac Input 2.0 s max.

Minimum output current: Singles: 0 A

Weight: 260g (9.2 oz)

Environmental Specifications

Thermal performance:

Operating ambient (See derating curve): 0 °C to +70 °C

Non-operating: -40 °C to +85 °C

0 °C to 50 °C ambient, 200 LFM forced air: 150 W

0 °C to 50 °C ambient, convection cooled: 100 W

50 °C to 70 °C ambient, convection cooled: Derate linearly to 50% load

Relative humidity: Non-condensing: 5 - 95% RH

Ordering Information

Output Voltage: 24 V

Output Currents

Min: 0 A

Max (free air): 4.2 A

Max (forced air): 6.3 A

Ripple: 240 mV

Total Regulation: ± 3.0%
