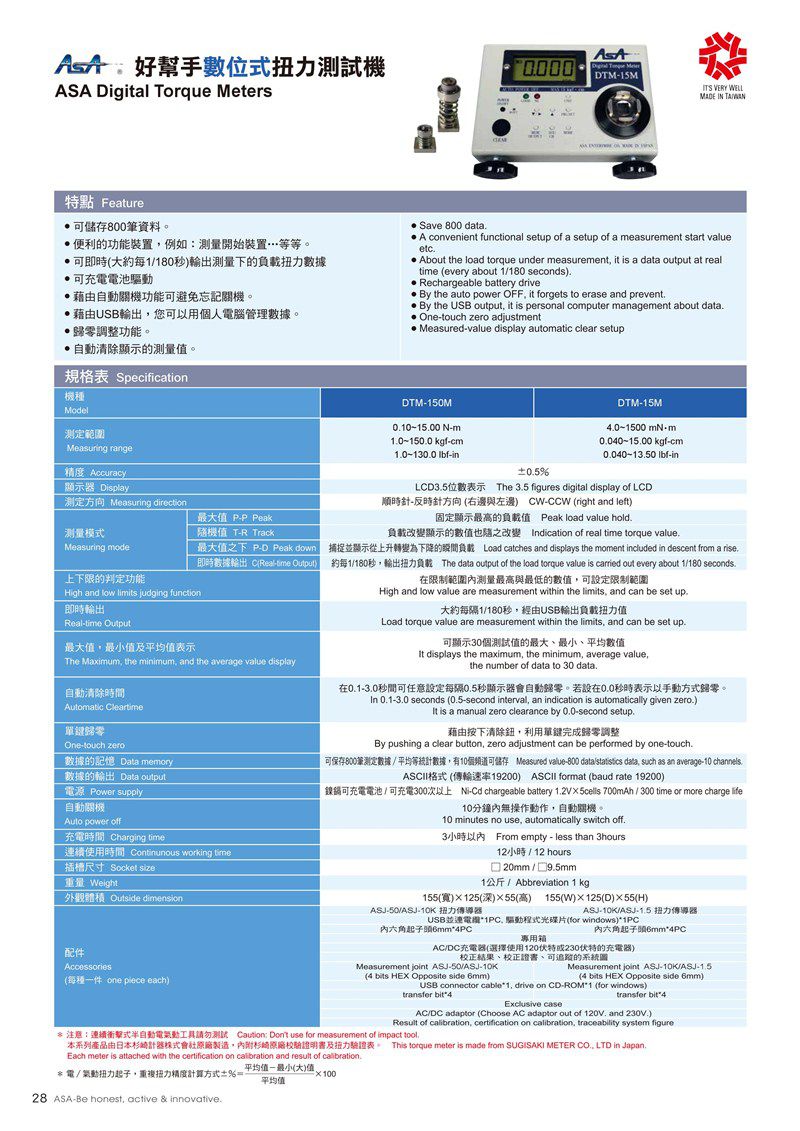

Measuring range:
0.10~15.00 N-m
1.0~150.0 kgf-cm
1.0~130.0 lbf-in
Accuracy: ±0.5%
Display: The 3.5 figures digital display of LCD
Measuring direction: CW-CCW (right and left)
Measuring mode: P-P Peak; T-R Track; P-D Peak down; C (Real-time Output)
High and low limits judging function: High and low are measurement within the limits, and can be set up
Real-time Output: Load torque value are measurement within the limits, and can be set up
The Maximum, the minimum, and the average value display: It displays the maximun, the minimum, average value, the number of data to 30 data
Automatic Cleartime: In 0.1-3.0 seconds
One-touch zero: By pushing a clear button, zero adjustment can be performed by one-touch
Data memory: Measured value-800 data statistics data, such as an average 1- channels
Data output: ASCII format (baud rate 19200)
Power supply: Ni-Cd changeable battery 1.2V x 5 cells 700mAh / 300 time or more change life
Auto power off: 10 minutes no use, automatically switch off
Charging time: From empty - less than 3 hours
Continunous working time: 12 hours
Socket size: 20 mm/9.5mm
Weight: Abbreviation 1 kg
Outside dimension: 155(W) x 125(D) x 55(H)
Accessories (one piece each):
Measurement joint ASJ-50VASJ-10K (44 bit HEX Opposite side 6mm)
USB connector cable, drive on CD-ROM (for window)
transfer bit 4
Exclusive case
AC/DC adaptor (Choose AC adaptor out of 120V and 230V)
Result of calibration, certification on calibration, traceability system figure
