Base: 73x50x55mm
Slot: 6.5mm
Dia. of hole: Ø3/8” / Ø8mm
Sub Pole (D2): Ø16mm
Sub Pole (L2): 200mm
Magnetic Power: 100 kgf
Main Stem (D1): Ø16mm
Main Stem (L1): 250mm

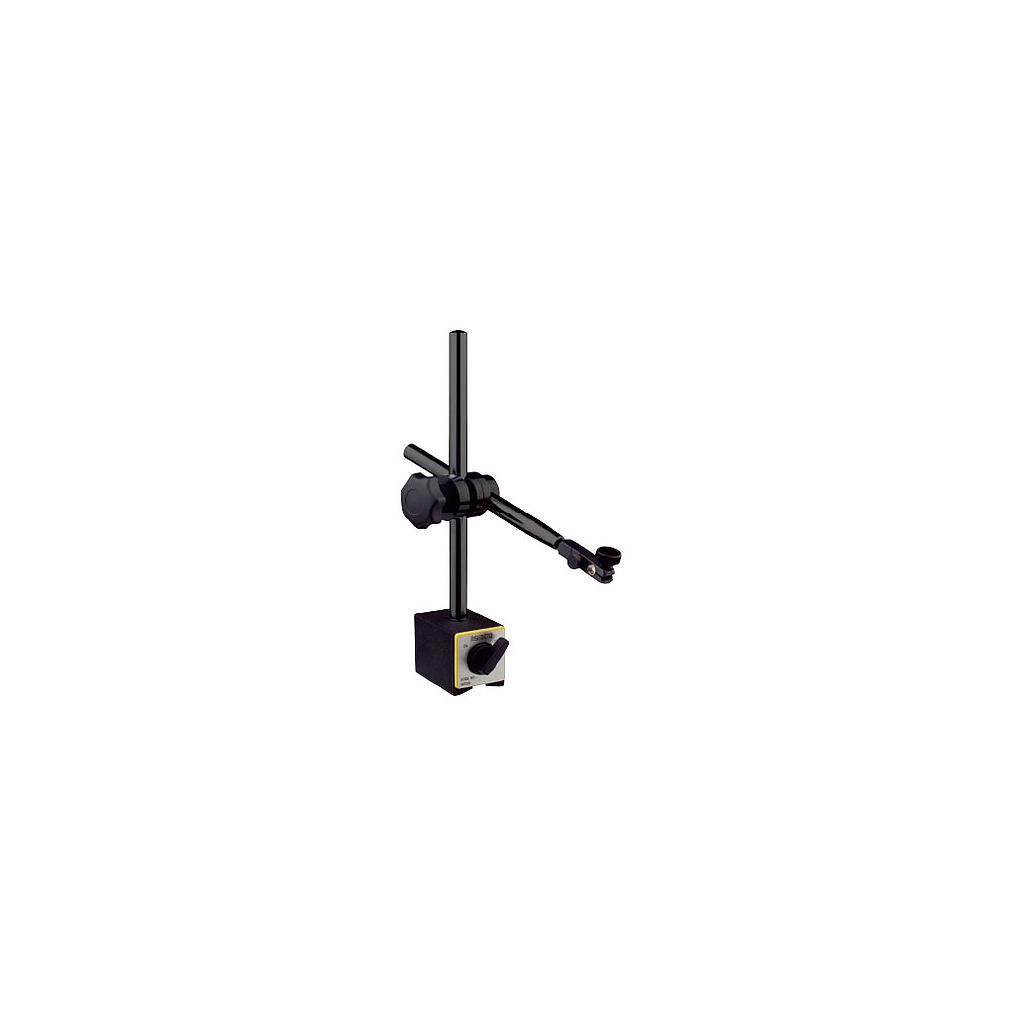

Accepts test indicators with dovetail clamping mechanism.
Dial gauges can be held by the 3/8” or 8mm diameter stem or by the lug backing plate.
New design, holding more solid and reliable, more stable performance, higher accuracy.
The rotary knob switches natural magnet on or off.
The precision surfaces and the bottom V are securely fastened to the ferrous workpiece or machine table when the rotary knob is in the on position.
