Camera: 2.0M Pixel Digital Camera
Weight: 1500kg

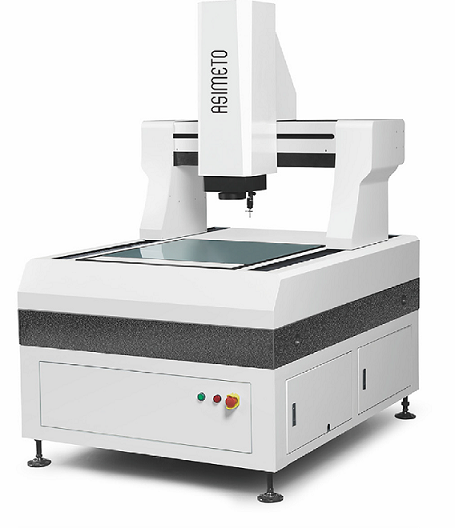

Model No.: CVS6050B
Zoom Lens**: Auto zoom lens with co-axial light
Field of View: 8.1 ~ 1.3mm (Depends on Camera and Lens)
Repeatability: ±2µm
Z-Axis Travel: 200mm
Base and Pillar: High Accuracy Marble
X/Y-Axis Travel: 600 x 500mm
Dimension (WxDxH): 1700 x 1180 x 1750mm
X/Y-Axis Accuracy*: ≤2+L/200(μm)
Working Environment: Temperature: 20°C±2°C Change range < 2°C/hr | Humidity: 30% ~ 80% | Vibration <0.002g, <15Hz
X/Y/Z-Axis Scale Resolution: High Precision Linear Scale, .0001mm
Illumination (Software Adjustment): Surface: 5-ring 8-division 0 ~ 255 grade continue adjustable | Contour: LED Parallel Illumination | LED Laser Navigation Lights
High precision marble base and mechanical structure provide great stability and rigidity.
Fully auto close loop control, auto measurement.
Can set auto measurement, and process batch measurement with high efficiency.
Auto zoom lens with co-axial light.
2.0M pixel digital camera.
Programmable 5-ring 8-division LED surface illumination.
Contour parallel LED illumination.
RSF / Renishaw 0.1μm linear scale.
Joystick control.
RationalVue software.
