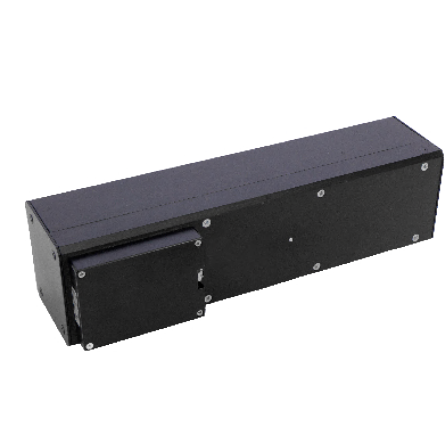

Atomtex BDKN-05 Neutron Radiation Detection Unit (0.025 eV – 14 MeVm, Neutron)

Detector 2 3He proportional counter in polyethylene moderator

Energy range: 0.025 eV – 14 MeV

Indication range of neutron count rate: 0-5•10^4s^-1

Measurement range of ambient neutron radiation dose equivalent rate: -

Measurement range of ambient neutron radiation dose equivalent: -

Typical sensitivity to neutron radiation (In dose rate measurement mode): -

Measurement range of neutron flux density: 0.1 – 2*10^3 neutron•s^-1 •cm^-2

Measurement range of neutron fluence: 1 – 3•10^6 neutron•cm^-2

Typical sensitivity to neutron radiation (In flux density measurement mode): 8 cps/(neutron•s^-1 •cm^-2 ) [Pu-Be]; 13 cps/(neutron•s^-1 •cm^-2 ) [Cf-252]

Limit of intrinsic relative measurement error

- Ambient dose equivalent rate: -

- Flux density: ±20%

Protection class: IР54

Interface: RS232

Mean operating life: ≥15 years

Operation temperature range: -20°С to +50°С

Relative air humidity: ≤95% (Air temperature ≤35 С without condensation)

Overall dimensions, weight: 105х115х380 mm / 3.5 kg
