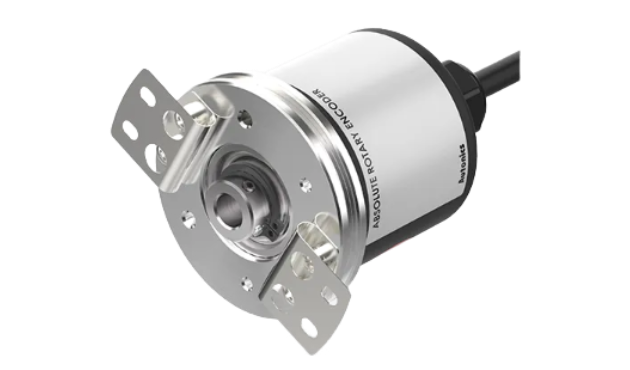

Autonics EP58HB8-64-3R-P-24 58 mm Single-Turn Absolute Rotary Encoders (Blind Hollow Shaft Type) (Ø8mm, 64P/R, CCW, 12-24VDC, PNP)
Manufacturer: Autonics Model: EP58HB8-64-3R-P-24 - Contact
Shaft inner diameter : Ø8mm
Max. response frequency : 35kHz
Max. allowable revolution : 3000rpm
Starting torque : Max. 90gf.cm(max. 0.00882N.m)
Resolution : 64P/R
Output code: Gray code
Rotating direction : CCW
Control output : PNP open collector
Power supply : 12-24VDC ±5%(ripple P-P: max. 5%)
Connection type : Axial cable type
Protection structure : IP50
