GENERAL
Operating Applications: General weighing, general weighing with accumulation, checkweighing, counting, peak measurement, batching and remote display
Calibration: Two to five points stored
Analog To Digital Measurement Rate: 80 Hz
Unit Of Measure: Two, configurable (pounds, kilograms, ounce, gram, pound/ounce, custom)
Capacity Selections: 9,999,999 with decimal located zero to five places
Incremental Selections: Multiples and sub-multiples of 1, 2, 5
Programmable Selections: Zero range, motion detection, automatic zero tracking, five point linearization
Time And Date: Battery backed up time/date/year (12 hr or 24 hour format)
Internal Resolution: 53,687,100 counts per mV/V per second
Digital Filtering: Harmonizer filtering with adaptable constant and threshold
Self Diagnostics: Display, keys, inputs, outputs, serial port
ELECTRICAL
Power Requirements: Line voltage: 90 VAC to 264 VAC (110-240 VAC nominal), frequency 50 or 60 Hz, 12 to 36 VDC
Power consumption: estimated at 150 mA at 12 VDC for one weight sensor and
180 mA at 12 VDC for four weight sensors
Excitation:
5 VDC, short circuit protected
Supports up to four 350 ohm weight sensors
4 or 6 conductors with sense leads
Detachable plug connectors
Analog Signal Input Range: -1 m/V/V to 5 mV/V
Analog Signal Sensitivity:
0.1 µV/V/divisions minimum
0.5 µV/V/divisions recommended
USER INTERFACE
Operational Keys: Tare, Select, Zero, Print, Units, F1, On/Off (no keys on signal processor)
Status Annunciators: Center of Zero, Motion, Gross, Net, Tare, Count, Print, Battery Status, Setpoint 1, Setpoint 2, Setpoint 3,
Over/Under/Accept bar graph or fill bar graph, lb, kg, Preset Tare, Total,
(Custom unit of measure– lb/oz, ton, gram, configurable), Active Ethernet connection
Keypad: 7 key chemical resistant polycarbonate

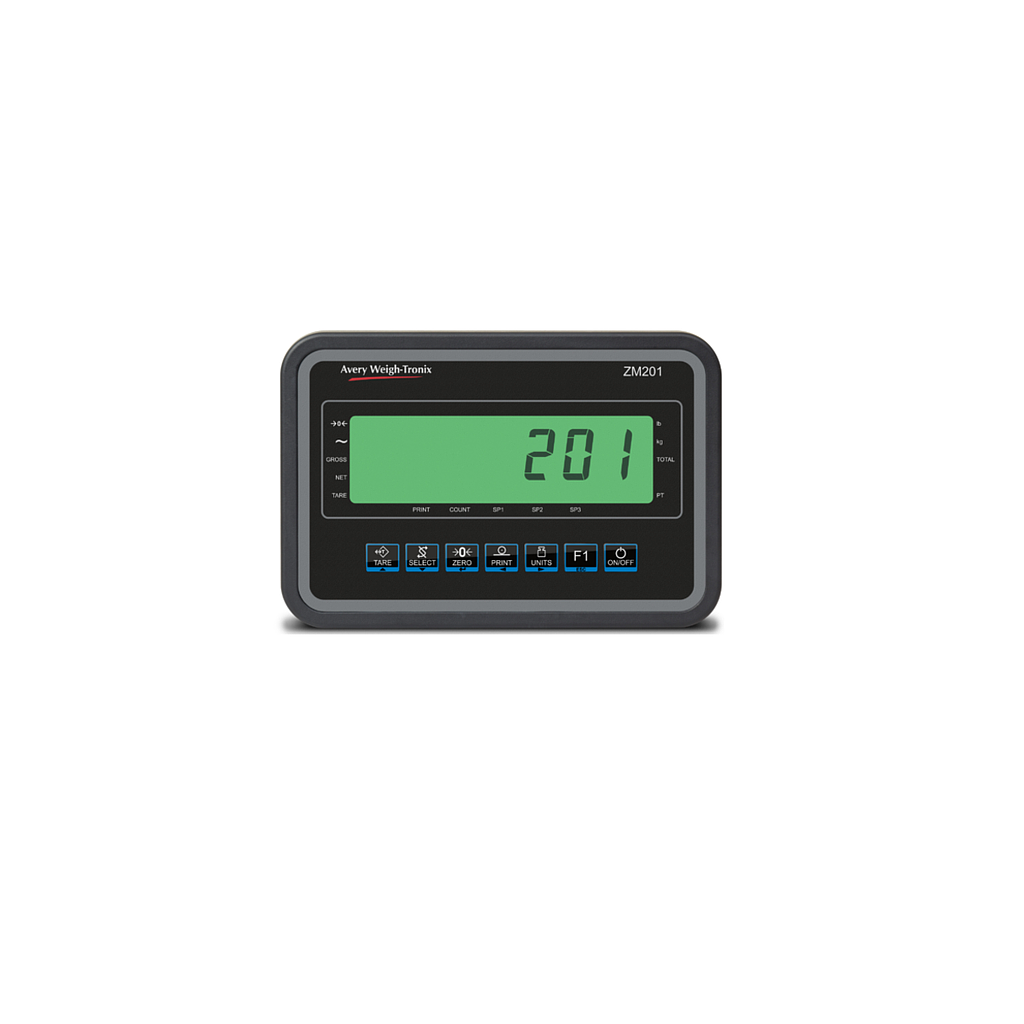

Display ABS: TN backlit 7-digit seven segment display with 1.2 in / 30 mm high digits
Stainless steel: TN backlit 7-digit seven segment display with 0.5 in / 13 mm high digits
Panel mount: TN backlit 7-digit seven segment display with 0.5 in / 13 mm high digits
Signal processor: No display
Displays have annunciators for status and mode identification
Display Rate Selectable (1, 2, 5, 10) times per second
INPUT/OUTPUT
Remote Inputs: Three logic level inputs for Zero, Print, Tare, Units, or Select
Standard Outputs: Three set point outputs, open collector design
Communications:
Two serial ports:
- Comm 1 RS232, no handshaking
- Comm 2 RS232, no handshaking
Ethernet: TCP/IP, DHCP, Static IP
Protocols (all ports):
- SMA Broadcast, Remote Display, and NCI
ZM201 Signal Processor Modbus/TCP
Circuitry Protection RFI, EMI and ESD protection
PHYSICAL
Operating Temperature: Compliance with legal-for-trade requirements Approval: 14° to 104° F / -10° to 40° C at 10 to 90% relative humidity, non-condensing
Industrial: -4° to 140° F / -20° to 60° C at 10 to 90% relative humidity, non-condensing
Enclosure: Stainless steel: 304 brushed stainless steel IP66 with tilt stand/ mounting bracket
Plastic: ABS plastic IP20 with rubber feet
Panel mount: Stainless steel panel mount IP66
