Pressure range: 1~160 MPa
Piston: 500g
Mass: 80kg
Accuracy: ±0.05% of reading
Engineering units: MPa, bar, psi, kg/cm2
Piston & cylinder material: Tungsten carbide
Mass set material: 304 Stainless Steel, density is 7.85 x10³kg/m3
Fluid: Mineral oil, Sebacate (≥25MPa)
Working ambient temperature: 15~25℃
Engineering units: MPa, bar, psi, kg/cm2
Pressure connector: M20x1.5 female (BSP or NPT is optional)
Dimension: 300 x 320 x 260 mm
Portable deadweight tester net weight: 15kg
Engineering units: MPa, bar, psi, kg/cm2
Recalibration interval: 5 years
SCOPE OF DELIVERY
BL510 Portable deadweight tester with metal carrying case
Piston cylinder unit
Mass carrier
Mass set
Adapter kits (1/4 inch NPT, ½ inch NPT, G¼, G½)
User manual
Transit case

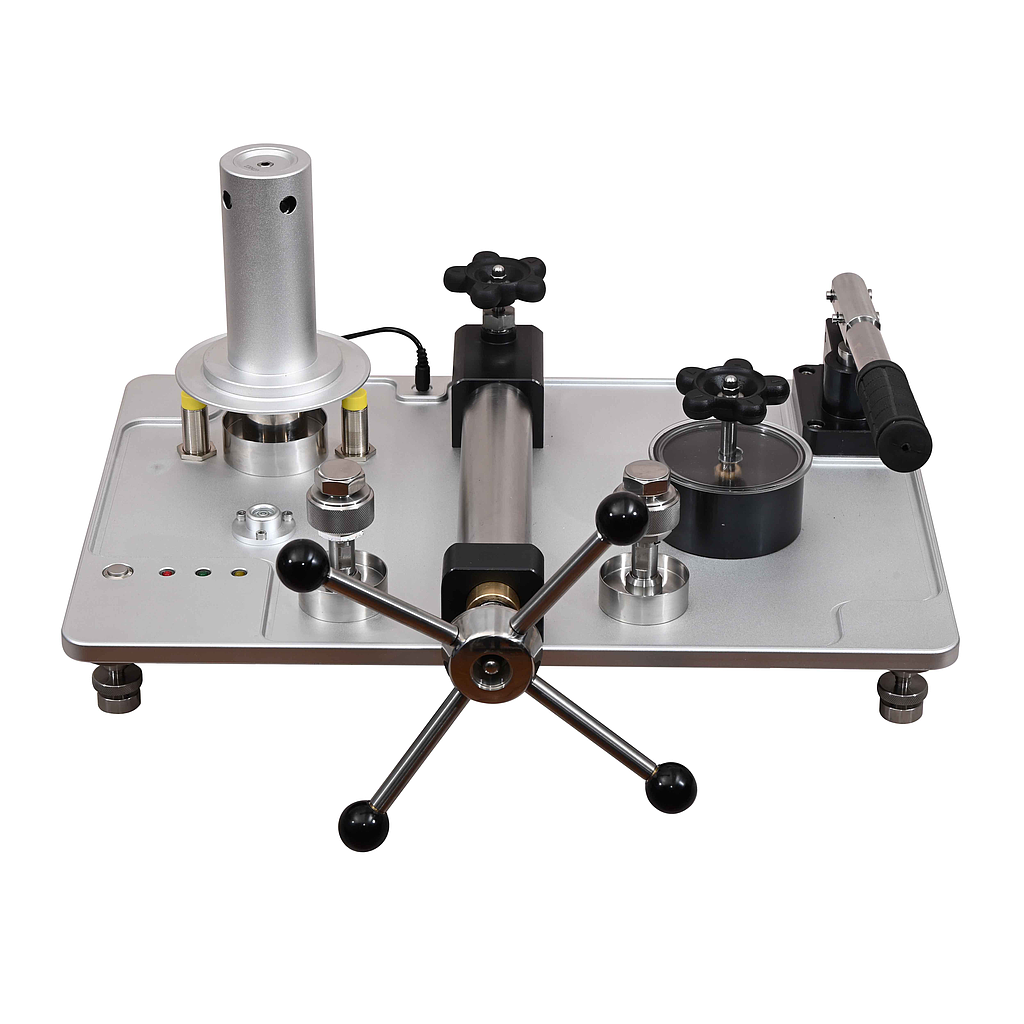

The model BL510 economic deadweight tester provides a precise means for generating pressure with high accuracy that can be used as a primary calibration standard. The unit's built-in shuttle valve provides the means to control the rate of pressure increase, while precision adjustment is accomplished with an integral micro vernier displacement valve. An ideal product that offers a rugged field ready primary standard, certified to yield consistent accurate results.
FEATURES
Pressure range is up to 160 MPa
Accuracy: ±0.05% of reading
Piston and cylinder is tungsten carbide
Piston rod is anti-broken structure
Interchangeable weights
Compact design and portability
Positive over-pressure protection
Robust construction
Budget friendly
APPLICATION
Test and measurement in field
Calibration labs
