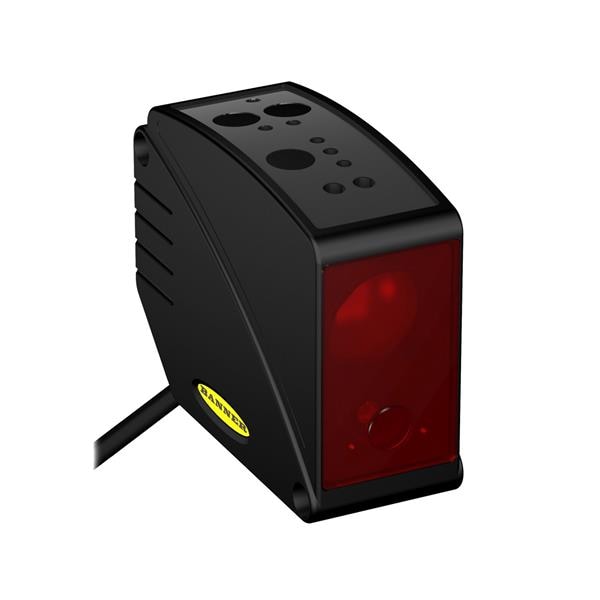

Banner Engineering LT3PI W/30 Distance Sensor Modules - Finished Units LT3 Series: Diffuse T.O.F. Laser Distance Measurement; Range: 0.3-5.0 m; Input: 12-24 V dc; Analog Output: 4-20 mA; Discrete Output: PNP; 9 m (30 ft) Cable
Manufacturer: Banner Engineering Model: LT3PI W/30 - Contact
Width: 35.3 mm
Height: 68.5 mm
Length: 87 mm
IP Rating: IP67
Unit Weight: 789.250 g
Mounting Style: Chassis Mount
Sensing Distance: 300 mm to 5 m
Supply Voltage - Max: 24 VDC
Supply Voltage - Min: 12 VDC
Operating Supply Current: 108 mA
Operating Supply Voltage: 12 VDC to 24 VDC
Maximum Operating Temperature: + 50 C
Minimum Operating Temperature: 0 C
