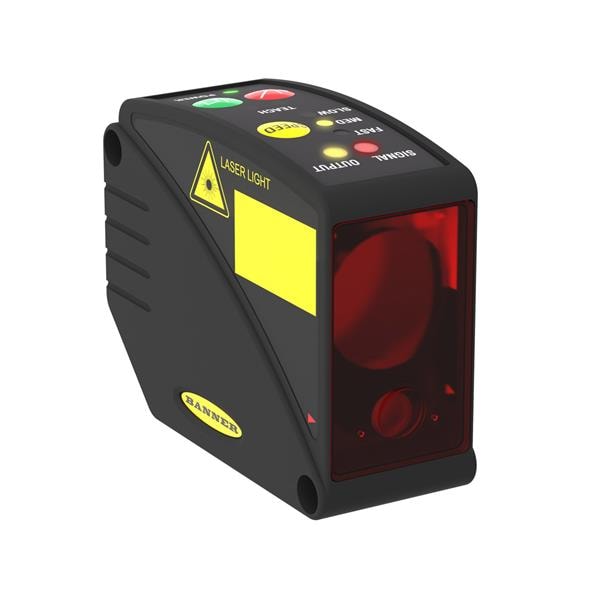

Banner Engineering LT3PILVQ Long-Range Retro Time-of-Flight Laser Sensor LT3 Series: Laser Retroreflective Time-of-Flight Sensor; Range: 500 mm to 50 m; 12-24 V dc; Outputs: Discrete: PNP Analog 4-20 mA; 8-pin M12 Integral QD
Manufacturer: Banner Engineering Model: LT3PILVQ - Contact
Width: 35.3 mm
Height: 68.5 mm
Length: 87 mm
Features: Long Range 50 Meters, NPN or PNP Output
IP Rating: IP67
Dimensions: 87 mm x 35.3 mm x 68.5 mm
Mounting Style: Chassis Mount
Sensing Method: Laser
Sensing Distance: 500 mm to 50 m
Description/Function: Self-Contained Class 1 Laser Distance Sensor with Analog and Discrete Output
Supply Voltage - Max: 24 VDC
Supply Voltage - Min: 12 VDC
Operating Supply Current: 108 mA
Operating Supply Voltage: 12 VDC to 24 VDC
Maximum Operating Temperature: + 50 C
Minimum Operating Temperature: 0 C
