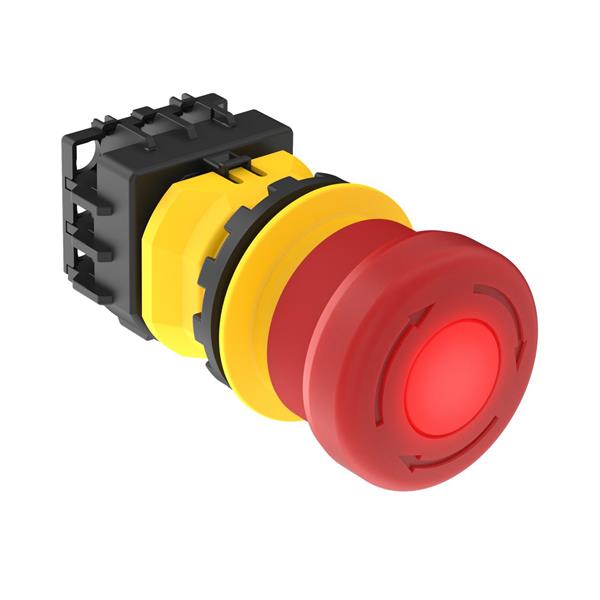

Banner Engineering SSA-EB1PL1-04 Push Turn SSA-EB1 Panel-mount Emergency Stop Push Button; Illuminated 40 mm Actuator; Contacts: 4NC; Screw Terminals; 30 mm mounting hole
Manufacturer: Banner Engineering Model: SSA-EB1PL1-04 - Contact
Life: 250000 Cycle
Width: 37 mm
Height: 80.7 mm
Actuator: Round
IP Rating: IP65
Lamp Type: LED
Button Size: 40 mm
Illuminated: Illuminated
Unit Weight: 49.895 g
Contact Form: 4PST
Panel Cutout: 30.5 mm
Actuator Style: Button
Current Rating: 5 A
Mounting Style: Panel Mount
Panel Thickness: 1 mm to 5 mm
Switch Function: ON - OFF
Housing Material: Polycarbonate (PC)
Actuator Material: Thermoplastic (TP)
Termination Style: Screw
Illumination Color: Red
Maximum Operating Temperature: + 55 C
Minimum Operating Temperature: - 25 C
