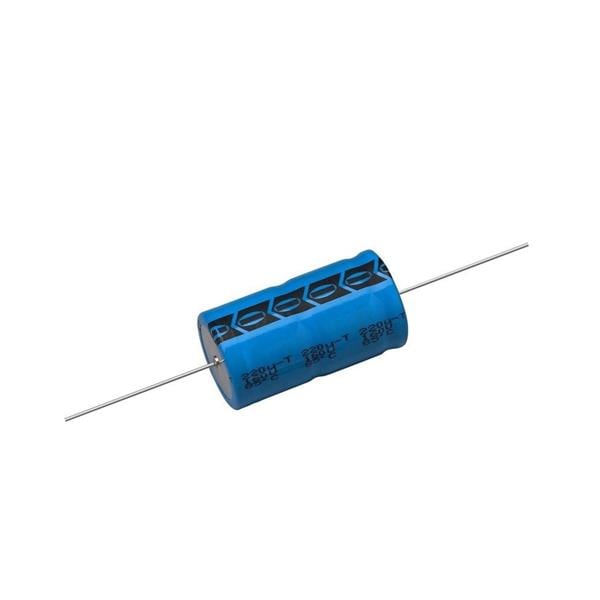

Vishay BC Components MAL211829689E3 Axial High Temperature Aluminum Capacitors 100V 68uF 20% AEC-Q200
Manufacturer: Vishay BC Components Model: MAL211829689E3 - Contact
ESR: 1.8 Ohms
Life: 8000 Hour
Length: 30 mm (1.181 in)
Diameter: 12.5 mm (0.492 in)
Tolerance: 20 %
Lead Style: Straight
Capacitance: 68 uF
Unit Weight: 7.400 g
Qualification: AEC-Q200
Ripple Current: 320 mA
Leakage Current: 45 uA
Termination Style: Axial
Voltage Rating DC: 100 VDC
Dissipation Factor DF: 0.08
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
