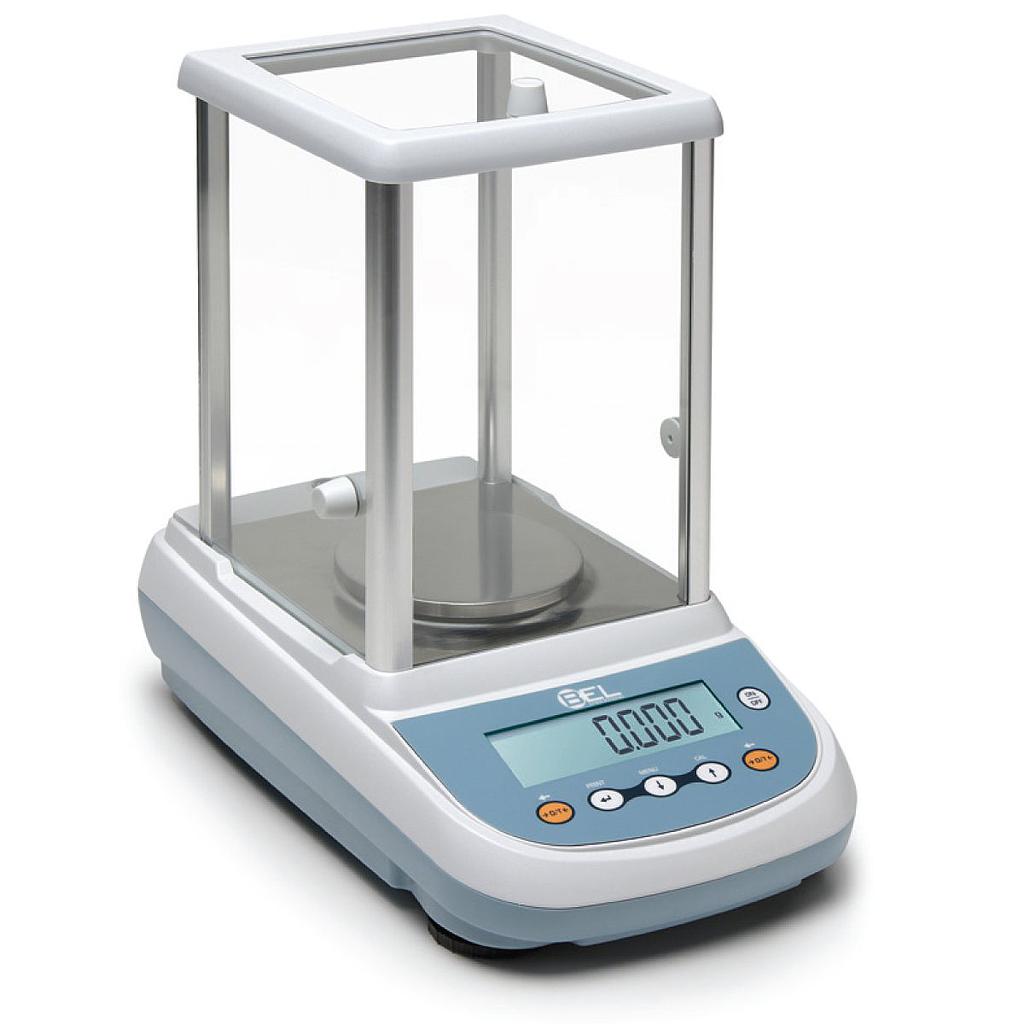

BEL Engineering M1003 Precision Balance (1000g; 0.001g)

Capacity [Max]: 1000g

Resolution [d]: 0.001g

Calibration: External

Pan Size: Ø 110mm

Response Time (sec.): ≤3

Repeatability: 0.001g

Linearity: ± 0.003g

Verification: N/A

Minimum Load: 20 mg

Display: LCD

Tare Range (Subtractive): 1000 g

Span Drift In +10…+30°C: ± 4 ppm/°C

Interface: RS232

Database Capacity: -

Windshield Type And Dimensions: Glass circular / Ø160x70 mm

Working Temperature: 5 - 35°C (15-30°C for verified models)

Power Supply: 110-230Vac. 50/60Hz, output 24V 500mA 13VA

Power Consumption (Max): 2 Watt

Calibrates With (Class): 200 g (F1)

Balance Dimensions (W X L X H): 215 x 345 x 155 mm

Net Weight / Gross Weight, Approx.: 4.6 / 6.6 Kg
