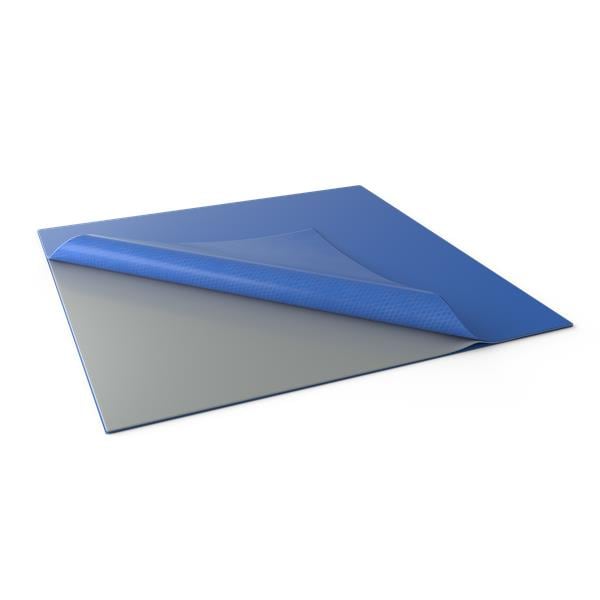

Bergquist TGP3000ULM-0.160-02-0816 Thermal Pad GAP PAD, 3W/mK, 8"x16" Sheet, 0.160" Thickness, TGP3000ULM/3000ULM, IDH 2633458
Manufacturer: Bergquist Model: TGP3000ULM-0.160-02-0816 - Contact
Size: 8 in x 16 in
Color: Blue
Width: 203.2 mm
Length: 406.4 mm
Material: Silicone
Thickness: 4.064 mm
Unit Weight: 1.018 kg
Designed for: Telecommunications, Optical Tranceivers, ASICs/DSPs
Tensile Strength: 25 psi
Breakdown Voltage: 6 kVAC
Flammability Rating: UL 94 V-0
Thermal Conductivity: 3 W/m-K
Maximum Operating Temperature: + 200 C
Minimum Operating Temperature: - 60 C
