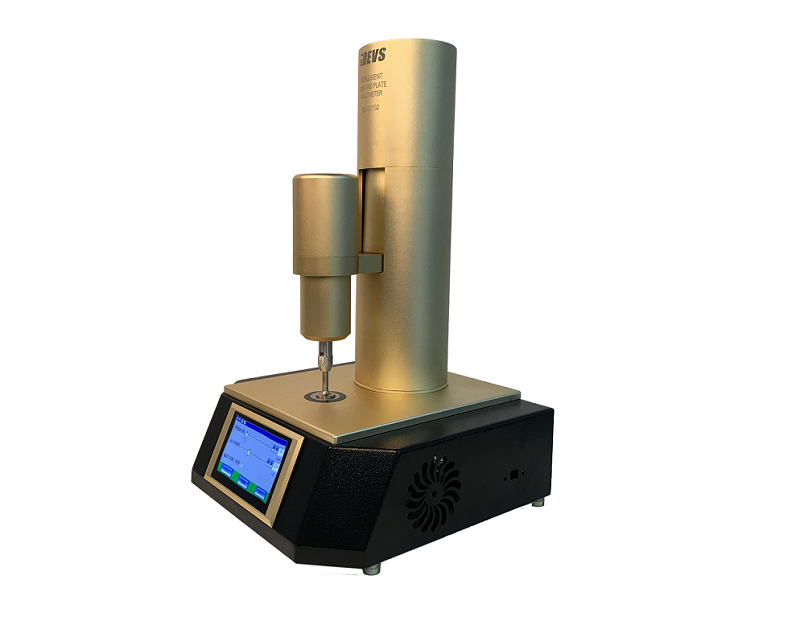

Bevs BEVS 1132/50 Intelligent Cone and Plate Viscometer (0.1-50P, 10-5000cP, Cone 4)

Introduction:

BEVS 1132 Intelligent Cone and Plate Viscometer is a highly accurate instrument that research the rheological properties of fluid products. It is a automatic viscometer with adjustable shear rate and controllable temperature. High precision DC motor and automatic lifting platform to keep the viscosity measurement becomes simpler and more accurate.Since Newtonian or non-Newtonian fluids show different viscosities relative to the shear rate, the BEVS1132 Intelligent Cone and Plate Viscometer strictly control the shear rate of 10,000 S  (BS standard) and 12,000 S  (ASTM standard). In addition, the shear rate of 333-20000 S  can also be freely controlled by the operator.Since most viscosity measurements are very sensitive to  temperature, the BEVS 1132 can accurately control the temperature control plate from +5 - 75 °C by placing the sample on the temperature control plate. The temperature curve and the shear rate viscosity curve can be obtained. The portable instrument makes it more practical and versatile in the study of rheological properties of Newtonian or non-Newtonian products.

Features

Automatic lifting

Automatic measurement

Compatible with various speeds

High definition touch screen display

Display temperature and viscosity curve

Display shear rate

Precise temperature control

Output measure data(optional)

Order Information:

BEVS 1132          Intelligent Cone and Plate Viscometer (without cone)

BEVS 1132/5       Cone 1 with 5 oils (0-5P)

BEVS 1132/10     Cone 2 with 5 oils (0-10P)

BEVS 1132/20     Cone 3 with 5 oils (0.1-20P)

BEVS 1132/50     Cone 4 with 5 oils (0.1-50P)

BEVS 1132/100   Cone 5 with 5 oils (0.1-100P)
