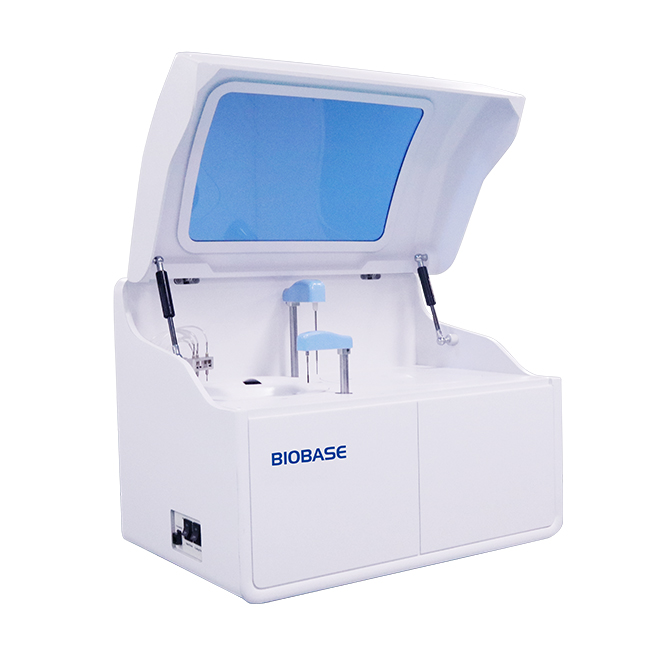

Manufacturer: BIOBASE
Model: BK-200Mini
Origin: China
Warranty: 12 months
Features: 37 Sample positions; 28 Reagent positions; 48 Reaction cuvettes; 200 tests per hour; Probe anti-collision function.
Throughput:200 Tests/hour
Analysis Method:End-point, Fixed-time, Rate(Kinetic)
Sample & Reagent System
Sample Positions:37 sample positions
Reagent Position:28 reagent positions
Sample Volume:2~70ul
Reagent Volume:20~350ul
Probe:Liquid level sensor function, anti-collision function.
Probe Washing:Automatic washing interior and exterior
Reagent Cooling:Refrigerated tray with independent switch
Reaction SystemTemperature Control:37+0.1℃, real-time monitoring
Cuvettes:48 reusable cuvettes,optical length 6mm
Mixer Probe:Independent stirring
Washing:Automatic cuvettes washing
STAT function:YES
Light Source:6V/10W halogen lamp
Spectrophotometry:Post-spectral spectrophotometry
Wavelength:340,405,450,510,546,578,630,700nm
Absorbance:0~3.0Abs
Calibration
- Linear:K factor, 1-point ,2-point and multipoint liner Non-- Linear:Spline,Polygon,Index,Ogarithm,Logit-4P, Logit-5P
Quality Control:Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D)
Software:Windows 7/8/10 , 32or 64bit
LIS System:Bi-direction,support HL7 protocol
Interface:LAN port access
Printer:External,multiple reporting mode available
Power Supply:AC220V+10%,50/60Hz, 110V+10%,60Hz, 300W
Temperature:10℃～30℃
Water Consumption:Deionized water:3L/H
Humidity:30-80%
Size (W*D*H):625*425*460mm
Net Weight:36kg
Package Size (W*D*H):721*531*855mm
Gross Weight:50kg
