Number of Outputs: Three (two variable and one fixed)
Range: 0 to 32 VDC / 0 to 6 A (variable), and 5 V / 3 A (fixed)
Ripple & Noise: <1 mvrms="" 3="" marms="" br=""> Power Requirements: 115/230 VAC
Dimensions: 230 x 170 x 310 mm
Weight: 9.0 kg
Included Accessories: Power cord, instruction manual, two pairs of test leads

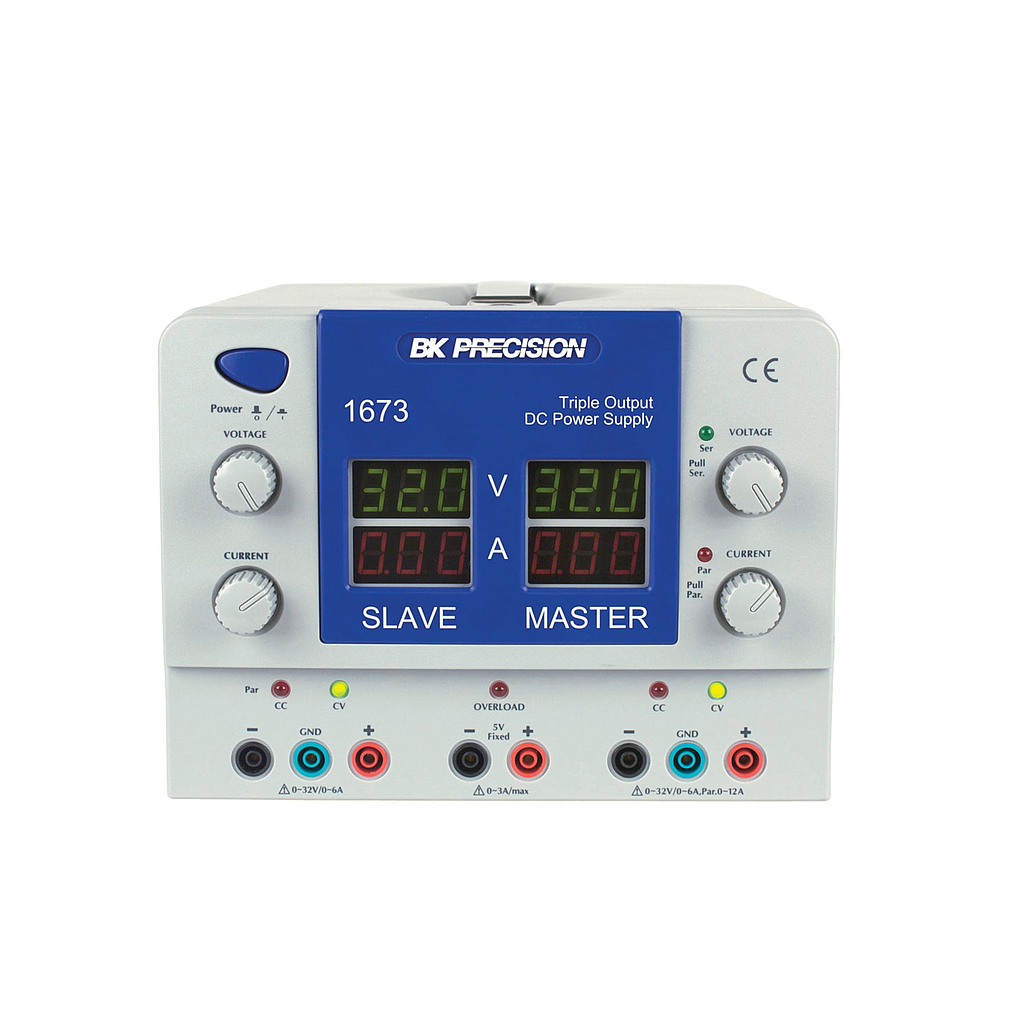

The 1672 and 1673 are quad display triple output DC power supplies that provide two variable outputs and one fixed output. The four displays allow the user to continuously monitor the voltage and current values of the two main outputs. The variable outputs can work independently, in series tracking, or parallel mode.
| Model Guide | ||
|---|---|---|
| Model | 1672 | 1673 |
| Voltage (variable outputs) | 0-32 V | 0-32 V |
| Current (variable outputs) | 0-3 A | 0-6 A |
| Fixed output | 5 V / 3 A | 5 V / 3 A |
