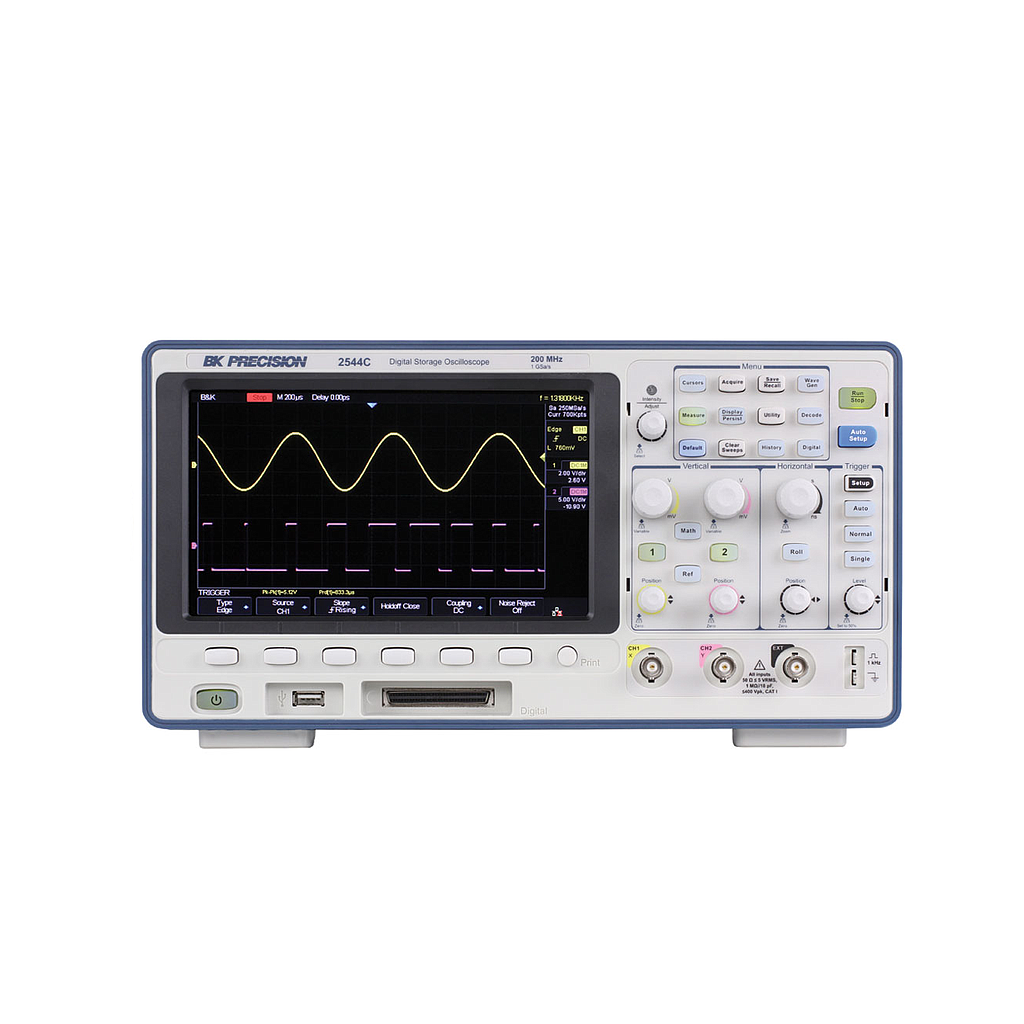

Bandwidth 100 MHz
Channels 2
Sample Rate 1 GSa/s (single channel),
500 MSa/s (dual channel)
Input Channels Analog: 2
Digital: 16 (-MSO models or with LA2540C upgrade)
Memory Depth 14 Mpts (single channel),
7 Mpts (dual channel)
Waveform Update Rate 60,000 wfms/s
Hardware Bandwidth Limits 20 MHz
Input Coupling DC, AC, GND
Input Impedance 1 MΩ ± 2% || (22 pF ±3 pF)
50 Ω ± 2%
Ch to Ch Isolation >40dB
Acquisition System
Peak Detect 1 ns
Average 4, 16, 32, 64, 128, 256, 512, 1024
Enhanced Resolution 0.5, 1, 1.5, 2., 2.5, 3 bits selectable
Interpolation Sin(x)/x, Linear
Vertical System
Vertical Resolution 8 bits
Vertical Sensitivity 500 μV/div to 10 V/div (1-2-5 )
Maximum Input Voltage 1 MΩ < 400 Vpk; 50 Ω <5 Vrms
DC Gain Accuracy ±3%: 5 mV/div to 10 V/div; ±4%: < 2 mV/div
Horizontal System
Time Base Range 2.0 ns/div to 50 s/div
Time Base Accuracy ±25 ppm
Ch to Ch Deskew Range ±100 ns
Trigger System
Modes Auto, Normal, Single
Coupling DC, AC, LF Reject, HF Reject, Noise Reject Ch1-Ch2
Trigger Level
Internal: ±4.5 div from center
External: EXT: ±0.6 V
EXT/5: ±3 V
Hold-Off Range 100 ns to 1.5 s
Types Edge, Slope, Pulse, Video, Window,
Interval, Dropout, Runt, Pattern
Serial Trigger I
2
C, SPI, UART/RS232, CAN, LIN
Cursors
Mode Manual, Track
Measurements ∆T, 1/∆T, X2, X1, ∆V, Y2, Y
Math Operation Add, Subtract, Multiply, Divide, FFT, Derivative,
Integral, Square Root
FFT Windows: Rectangle, Blackman,
Hanning, Hamming, Flattop
Waveform Measurements
Voltage
Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Mean, Cmean,
Stdev, Cstd, Vrms, Crms, FOV, FPRE, ROV, RPRE,
Level@Trigger
Time +SR, -SR, Period, Freq, +Width, -Width, Rise, Fall,
BWidth, +Duty, -Duty, Time@Mid
Delay Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFF, Skew
Statistics Current, Mean, Min, Max, Stdev, Count
Gating Time domain
I/O Interface
Standard USB Host, USB Device, LAN, Pass/Fail, Trigger Out
Pass/Fail 3.3 V TTL Output
Display System
Display 8” Color TFT-LCD, 800 x 480 Resolution
Wave Display Mode Vectors, Dots
Persistence Off, Infinite, 1 sec, 5 sec, 10 sec, 30 sec
Intensity Grading 256 Levels
Language
Simplified Chinese, Traditional Chinese,
English, French, Japanese, Korean, German,
Russian, Italian, Portuguese
Digital Channels 16
Sample Rate 500 MSa/s
Memory Depth 14 Mpts/Ch
Maximum Input Voltage ± 20 Vpeak
Threshold Accuracy ± (3% of threshold setting + 150 mV)
Input Dynamic Range ± 10 V
Minimum Input Voltage Swing 800 mVpp
Input Impedance 100 kΩ || 8 pF
Maximum Input Frequency 60 MHz
Minimum Detectable Pulse
Width 8.3 ns
Ch to Ch Skew ± (1 digital sample interval)
User Defined Threshold Range ± 3 V in 10 mV steps
Threshold Selections TTL, CMOS, LVCMOS3.3, LVCMOS2.5,
Custom (-3 to +3 V)
Power Requirements 100 to 240 VAC, CAT II, 50 VA Max, 45 Hz to 440 Hz
Dimensions (W x H x D) 4.8” x 7.2” x 13.4” (123 x 184 x 340 mm)
Weight 7.3 lbs (3.3 kg
Included Accessories
Passive probes (one per channel), power cord,
certificate of calibration, USB (Type A to B)
communication cable
Optional Accessories 16-channel digital logic probe (LP2540C)
