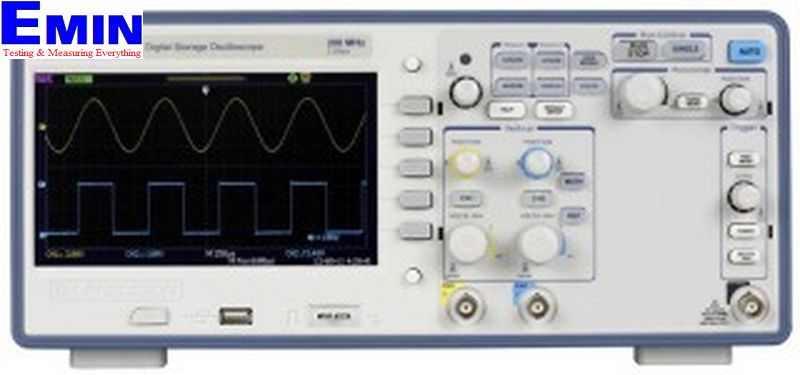

BK Precision 2554 Digital Storage Oscilloscope (100Mhz, 2CH, 2 GSa/s)

Name: BK Precision 2554 Digital Storage Oscilloscope (100Mhz, 2CH, 2 GSa/s)
Brand: BKPRECISION

ManufacturerBKPRECISION(View more products from this manufacturer)

Model2554

OriginChina

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Manuafacturer: BK PRECISION
Model : 2554
Original: China
Warranty : 12 month

Bandwidth: 100 MHz
Real Time Sampling Rate: 2 GSa/s (half-channel interleaved), 1 GSa/s (per channel)
Channels: 2
Max Memory Depth: 24 kpts (half-channel interleaved)(1)(2), 12 kpts (per channel)
Vertical Resolution: 8 bit
Vertical Sensitivity: 2 mV/div -10 V/div (1-2-5 order)
Horizontal Scan Range: 2.5 ns/div – 50 s/div
Maximum Input Voltage: 400 V (DC+AC pk-pk, 1 MΩ input impedance, X10)
I/O Interface: USB, LAN
Trigger: Edge, Pulse Width, Video*, Slope, Alternative
Math Operation: Add, Subtract, Multiply, Divide, FFT
FFT: Hanning, Hamming, Blackman, Rectangular
Measure: Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Vavg, Mean, Crms, Vrms, ROV, FOV, RPRE, FPRE, FREQ, Period, Rise Time, Fall Time, BWid, + Wid, - Wid, + Duty, - Duty, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
Display: 7 in. Color TFT, 480 x 234 resolution, 64K color
Power Requirements: 100-240 VAC
Dimensions: 358 x 156 x 118 mm
Weight: 4.3kg
Supplied Accessories: User manual, passive probes (one per channel), power cord, certificate of calibration, USB (Type A to B) communication cable

The 2550 series digital storage oscilloscopes deliver performance and value in 2-channel and 4-channel configurations. With bandwidth from 70 MHz to 300 MHz and 2 GSa/s sample rates, these oscilloscopes offer 24 kpts/Ch waveform memory, 32 automatic measurements, and advanced triggering capabilities including math functions. Engineered to allow you to see more of your signal under test, the 2550 series’ widescreen 7” TFT display offers a significantly larger viewing area than typical economy oscilloscopes (5.7”).

Bandwidth up to 300 MHz
2 GSa/s sample rate
4-channel acquisition (on select models)
Large 7" widescreen color display
32 automatic measurements
FFT plus four additional math functions
Built-in context sensitive help system
50 Ω input coupling
PC software that lets you remotely control the oscilloscope and capture, save, and analyze waveform data
Front and rear panel USB host port for convenient storing and recalling of waveform data, setups, and screenshots on a USB flash drive
Standard LAN (supports SCPI) and USB device port (USBTMC compliant) for remote PC control

Model Guide
Model	2552	2553	2554	2555	2556	2557	2558	2559
Bandwidth	70 MHz	70 MHz	100 MHz	100 MHz	200 MHz	200 MHz	300 MHz	300 MHz
Channels	2	4	2	4	2	4	2	4
