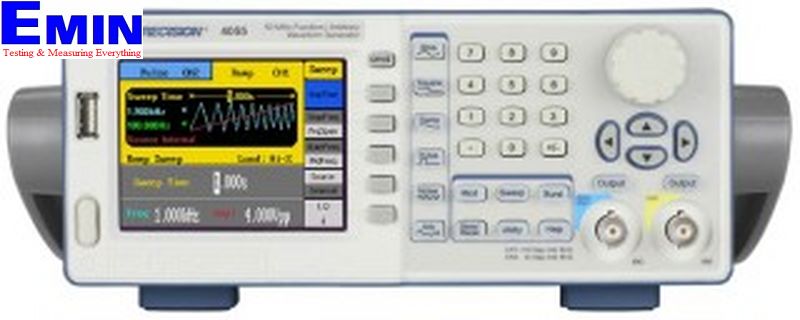

BK Precision 4053 Dual Channel Function/Arbitrary Waveform Generators (10Mhz, 2CH)

Manuafacturer:  BK PRECISION
Model : 4053
Original: China
Warranty : 12 month


Channels: 2
Sine: 1 µHz – 10 MHz
Square: 1 µHz – 10 MHz
Triangle, Ramp: 1 µHz – 300 kHz
Pulse: 500 µHz – 5 MHz
Built-in Waveforms: 48 built-in waveforms (includes DC)
Amplitude Range: CH1: 2 mVpp – 10 Vpp into 50 Ω, CH2:2 mVpp – 5 Vpp into 50 Ω
Pulse Width: 16 ns minimum, 8 ns resolution
Burst: sine, square, ramp, pulse, arbitrary (except DC)
Phase Offset: 0 ° – 360 °
Trigger: TTL compatible
Modulation: AM, FM & PM, ASK & FSK, DSB-AM, PWM
Frequency Counter: 100 mHz – 200 MHz
Display: 3.5” TFT-LCD display, 320 x 240
Power: 100-240VAC
Dimensions: 213 x 89 x 281 mm
Weight: 2.6 kg
Standard Accessories: Getting Started manual, full instruction manual on CD, AC power cord, USB type A-to-type B cable, certificate of calibration

Details

The 4050 Series Dual Channel Function/Arbitrary Waveform Generators are capable of generating stable and precise sine, square, triangle, pulse, and arbitrary waveforms. With easy-to-read color displays and an intuitive user interface with numeric keypad, these instruments offer plenty of features including linear/logarithmic sweep, built-in counter, extensive modulation and triggering capabilities, a continuously variable DC offset, and a high performance 14-bit, 125 MSa/s arbitrary waveform generator. The main output voltage can be varied from 0 to 10 Vpp into 50 ohms (up to 20 Vpp into open circuit) and the secondary output can be varied from 0 to 3 Vpp into 50 ohms (up to 6 Vpp into open circuit).

  • 14-bit, 125 MSa/s, 16k point arbitrary waveform generator
  • Large 3.5-inch LCD color display with waveform preview
  • Linear and logarithmic sweep
  • AM/DSB-AM/ASK/FM/FSK/PM/PWM modulation functions
  • Variable DC offset
  • Adjustable duty cycle
  • Two independent channels with individual output On/Off buttons
  • Internal/external triggering
  • Gate and burst mode
  • 48 built-in predefined arbitrary waveforms
  • Store/recall up to 10 instrument settings and 10 arbitrary waveforms
  • Built-in counter
  • USB device port (USBTMC-compliant) with front panel USB host port
  • GPIB connectivity with optional USB-to-GPIB adapter (model AK40G)
  • SCPI-compliant command set
  • Short circuit protection on outputs



Model Guide
Model 4052 4053 4054 4055
Sine frequency range 1 µHz - 5 MHz 1 µHz - 10 MHz 1 µHz - 25 MHz 1 µHz - 50 MHz
Square frequency range 1 µHz - 5 MHz 1 µHz - 10 MHz 1 µHz - 25 MHz 1 µHz - 25 MHz
