BK Precision MDL200 Programmable DC Electronic Load Module (200W, 80V, 40A)

Name: BK Precision MDL200 Programmable DC Electronic Load Module (200W, 80V, 40A)
Brand: BKPRECISION

ManufacturerBKPRECISION

ModelMDL200

OriginChina

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Input Voltage: 0-80 V
Input Current: 0-40 A
Input Power: 200 W
Mode Regulation: CV, CC, CR, CW
Measurement: A, V, W
Over-Current/Over-Voltage/Over-Power/Over Temperature Protection
Power input: 110 / 220VAC
Dimensions: 82 x 183 x 573 mm
Weight: 5 kg
Includes: Certificate of calibration and test report, Option Mainframes MDL001, MDL002 extension

Mainframe: MDL001, MDL002

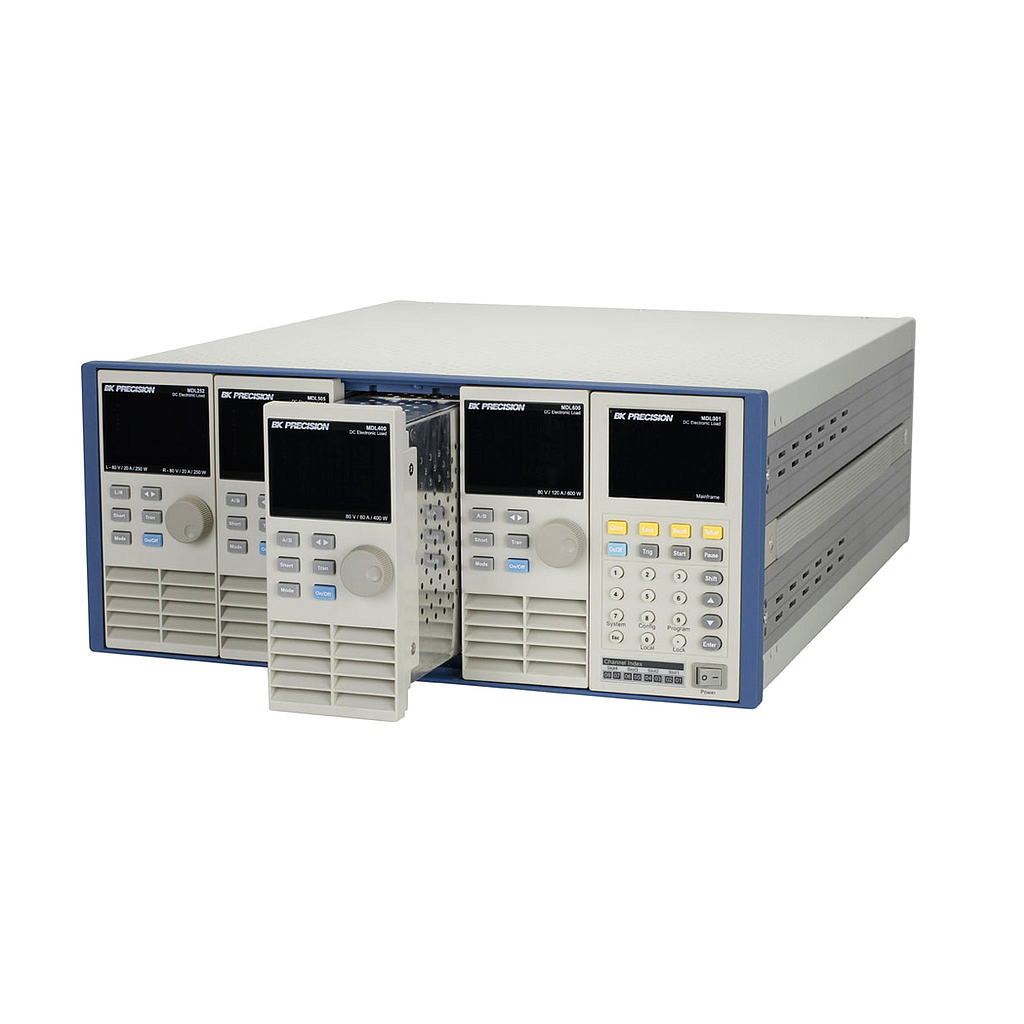

The MDL Series is a multi-channel modular programmable electronic load system. Six different modules of programmable DC loads ranging in power from 200 W to 600 W provide users the flexibility to test a wide range of power sources from multi-output AC/DC power supplies to batteries, fuel cells, and photovoltaic arrays.

The mainframe has four slots that can be configured with any assortment of the modules up to 2400 W (up to 4800 W with mainframe extension). The high-performance electronic load modules of the MDL Series are capable of operating in constant current (CC), constant voltage (CV), constant resistance (CR), constant power (CW), and constant impedance (CZ) mode, which uses DSP technology to simulate non-linear loads and realistic loading behavior.

Modules offer wide voltage and current range, 0 to 500 V, 0 to 120 A
Support for up to 4 modules/8 channels or 8 modules/16 channels with mainframe extension
Transient mode up to 25 kHz
Synchronous Load on/off function
Adjustable slew rate in CC mode
Standard LAN, GPIB, USB, and RS-232 interfaces with USBTMC/SCPI protocol support
Short circuit test
Built-in 16-bit resolution voltage and current measurement (0.1 mV, 0.01 mA)
Remote voltage sensing to compensate for the effect of voltage drop in wires
Operate identical modules in parallel mode for high current applications
OVP/OCP/OPP/OTP and reverse voltage protection

	Mainframe	Mainframe Extension	Modules
Model	MDL001	MDL002	MDL200	MDL252	MDL305	MDL400	MDL505	MDL600
Power	up to 2400 W total	up to 2400 W total	200 W	250 W*	300 W	400 W	500 W	600 W
Voltage	n/a	n/a	80 V	80 V	500 V	80 V	500 V	80 V
Current	n/a	n/a	40 A	20 A	20 A	60 A	30 A	120 A
Inputs	n/a	n/a	1	2	1	1	1	1

*MDL252 is a dual-channel module supporting a unique flexible power configuration. The user can allocate 250 W to either channel up to 300 W total (e.g. 50 W/250 W, 250 W/50 W, 150 W/150 W).
