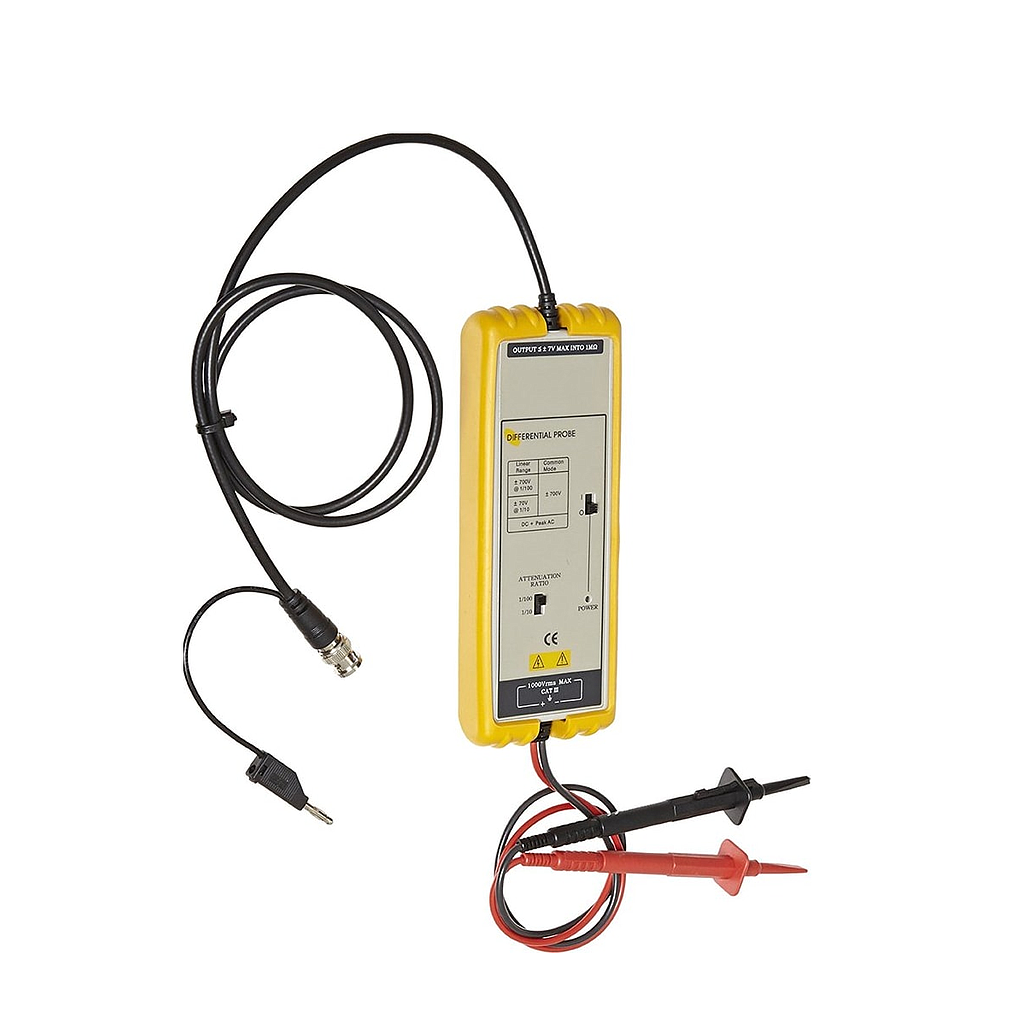

BKPRECISION PR-60 Active Differential Probe (25MHz)
Manufacturer: BKPRECISION Model: PR-60 - Request a Quotation
- Contact
Bandwidth: 25MHz (-3dB)
Attenuation Ratio: x10/x100
Accuracy: ±2%
Rise Time: 14 ns
Input Impedance: 4MΩ/10pF each side to ground
Input Voltage:
Max. Differential ±700V (DC+Peak AC)
Max. Common Mode ±700V (DC+Peak AC)
Output Voltage:
Max. Amplitude ±7V (into 2kΩ load)
Offset (Typical): ≤ ±5mV, -10˚to 40˚ C
Noise (Typical): 1.5 to 2mV
Source Impedance: 1Ω @ 1kHz, 8Ω @ 1MHz
CMRR
50Hz: 86 dB
20kHz: 66 dB
200kHz: 56 dB
Probes Sprung Hooks: (B/R)
Length of Input Lines: 18" (45cm)
Operating Temperature: 14˚ to 104˚F (-10˚ to 40˚C)
Power Requirements: 4 x AA Cells
Certification: IEC61010-1 CATIII
