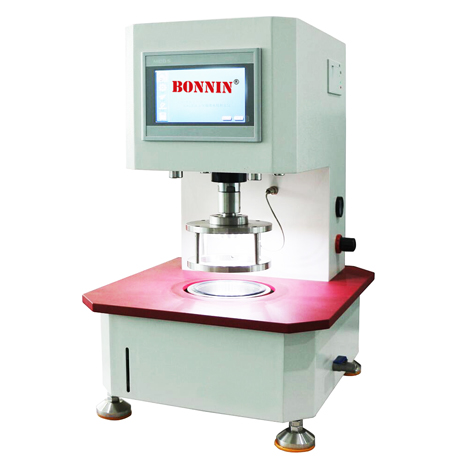

Bonnin YG812E-100 Servo Hydrostatic Pressure Head Tester
Manufacturer: Bonnin Model: YG812E-100 - Contact
Measuring range: customized
Pressure display resolution: 0.01kPa
Sensor test accuracy: ≤1% (5% to 100% within the full range of a single sensor)
Experimental area: 100cm², 7.8cm² (optional)
Pressurization rate: 1kPa～100kPa/min (stepless adjustable)
Working mode: supercharging method, constant pressure timing, constant pressure timing, water seepage and leakage, deflection experiment
Display mode: color screen in Chinese and English
Printer: thermal miniature printer
Dimensions: 500×440×680mm
Weight: 70kg
Power supply: AC220V 50Hz 500W
Application
YG812E Textile Fabric Hydrostatic Pressure Head Tester is used to measure the water resistance of various fabrics (such as coated fabrics, tent fabrics, non-woven fabrics, membrane materials, rainproof clothing fabrics and geotextile materials, etc.) that have undergone waterproof treatment.
It complies with GB/T 4744、ISO811、AATCC 127、DIN 53886、JIS L 1092.
