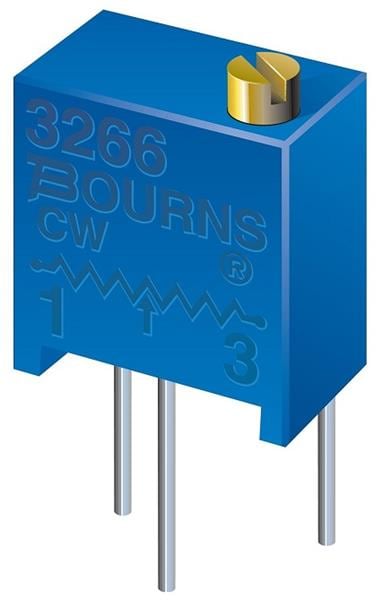

Bourns 3266Z-1-203LF 0.25 in Square Trimmer Resistor 1/4" 20Kohms 10% SQ W/Standoff Sealed
Manufacturer: Bourns Model: 3266Z-1-203LF - Contact
Width: 4.31 mm
Height: 7.24 mm
Tolerance: 10 %
Adjustment: Side Slot
Resistance: 20 kOhms
Orientation: Horizontal Adjustment
Unit Weight: 430 mg
Element Type: Cermet
Power Rating: 250 mW (1/4 W)
REACH - SVHC: Details
Mounting Style: PCB Mount
Voltage Rating: 300 V
Number of Turns: 12 Turn
Termination Style: PC Pin
Temperature Coefficient: 100 PPM / C
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
