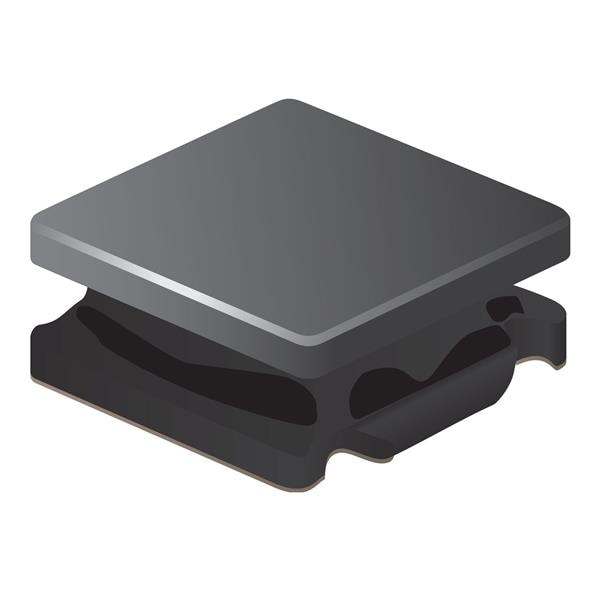

Bourns SRN4018-2R7M Power Inductor 2.7uH 20% SMD 4018
Manufacturer: Bourns Model: SRN4018-2R7M - Contact
Width: 4 mm
Height: 1.8 mm
Length: 4 mm
Core Type: Wirewound
Shielding: Semi-Shielded
Tolerance: 20 %
Inductance: 2.7 uH
Application: Power
Termination: Standard
Unit Weight: 102 mg
Core Material: Ferrite
Mounting Style: PCB Mount
Test Frequency: 100 kHz
Termination Style: SMD/SMT
Maximum DC Current: 2.3 A
Saturation Current: 2.4 A
Maximum DC Resistance: 52 mOhms
Self Resonant Frequency: 52 MHz
Maximum Operating Temperature: + 120 C
Minimum Operating Temperature: - 25 C
