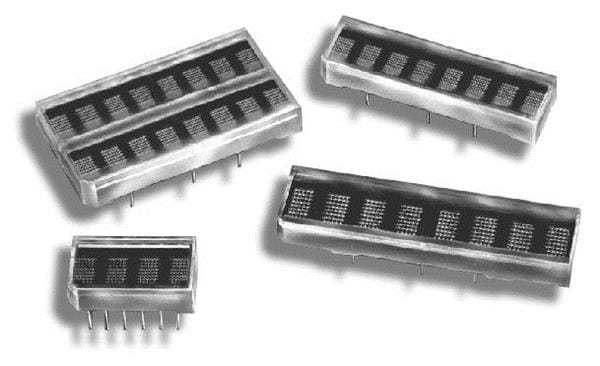

Broadcom HCMS-2923 LED Displays Green 574nm 2x8 Alphanumeric
Manufacturer: Broadcom Model: HCMS-2923 - Contact
Wavelength: 574 nm
Touch Panel: Without Touch Panel
Unit Weight: 15.681 g
Display Type: 5 x 7 Dot Matrix
Configuration: Anode Columns, Cathode Rows
Character Size: 2.11 mm x 3.71 mm
Mounting Style: Through Hole
Number of Digits: 16 Digit
Power Consumption: 4.8 W
Illumination Color: Green
Luminous Intensity: 114 ucd
If - Forward Current: 10 mA
Vf - Forward Voltage: 5 V
Viewing Area - W x H: 33.25 mm x 13.36 mm
Module Size - W x H x T: 35.56 mm x 19.81 mm x 5.08 mm
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
