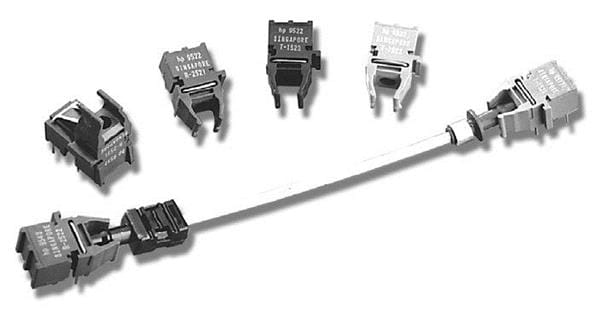

Broadcom HFBR-2524Z Receivers V-LINK HORIZONAL STD RCVR RoHS
Manufacturer: Broadcom Model: HFBR-2524Z - Contact
Width: 12.2 mm
Height: 7.6 mm
Length: 18.8 mm
Function: Designed for use in high and low volume cost assembly processes such as auto insertion and wave soldering.
Data Rate: 1 MBd
Fall Time: 40 ns
Rise Time: 80 ns
Fiber Type: Plastic Optical Fiber (POF)
Wavelength: 660 nm
Application: Industrial
Unit Weight: 1.588 g
Connector Type: Versatile Link
Emitting Source: LED
Moisture Sensitive: Yes
Transmission Distance: 10 m
Maximum Output Current: 25 mA
Operating Supply Voltage: 5 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
