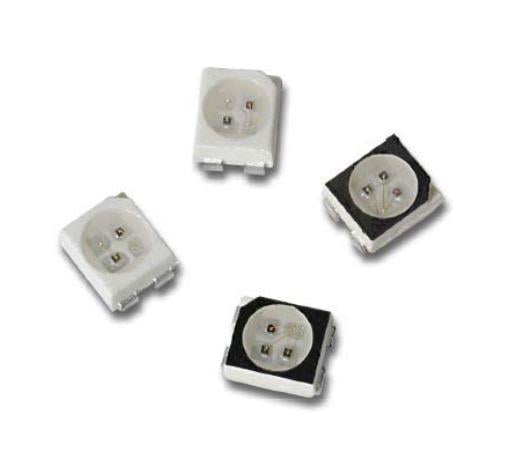

Broadcom HSMF-A205-A00J1 Multi-Color LEDs Org/EGrn Bi-Color
Manufacturer: Broadcom Model: HSMF-A205-A00J1 - Contact
Width: 2.8 mm
Height: 1.9 mm
Length: 3.2 mm
Lens Color: Colorless
Lens Shape: Round Flat
Unit Weight: 60 mg
Power Rating: 78 mW
Viewing Angle: 120 deg
Mounting Style: SMD/SMT
Lens Dimensions: 2.2 mm
Lens Transparency: Clear
Illumination Color: Orange, Green
Luminous Intensity: 16 mcd, 8 mcd
Moisture Sensitive: Yes
If - Forward Current: 20 mA
Vf - Forward Voltage: 2.2 V, 2.2 V
Vr - Reverse Voltage: 5 V
Wavelength/Color Temperature: 602 nm, 560 nm
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 55 C
