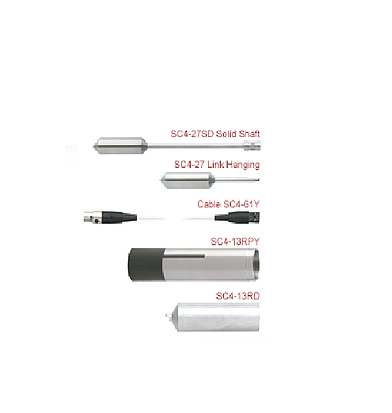

Brookfield Small Sample Adapter (with spindle and chamber)
Manufacturer: BROOKFIELD Model: Small Sample Adapter Origin: USA - Request a Quotation
- Request a Quotation
- Contact
Details
| MODEL | Spindle: SC4-21 Sample Chamber:* SC4-13R(P) Sample Volume: 7.1mL Shear Rate (sec-1): .93N | Spindle: SC4-27 Sample Chamber:* SC4-13R(P) Sample Volume: 10.4mL Shear Rate (sec-1): .34N | Spindle: SC4-15 Sample Chamber:* SC4-7R(P) Sample Volume: 3.8mL Shear Rate (sec-1): .48N | Spindle: SC4-28 Sample Chamber:* SC4-13R(P) Sample Volume: 11.0mL Shear Rate (sec-1): .28N | Spindle: SC4-29 Sample Chamber:* SC4-13R(P) Sample Volume: 13.5mL Shear Rate (sec-1): .25N | Spindle: SC4-14 Sample Chamber:* SC4-6R(P) Sample Volume: 2.1mL Shear Rate (sec-1): .40N | ||||||||
| DV3TLV*** | Not applicable for historical reasons. However, it is possible | |||||||||||||
| DV2TLV**** | to use the above spindles with any of these instruments. | |||||||||||||
| DV1MLV | Digital Viscometers/Rheometers will automatically calculate | |||||||||||||
| LVDVE | viscosity. Please contact Brookfield or an authorized dealer | |||||||||||||
| LVT | if you require information on viscosity range. | |||||||||||||
| DV3TRV*** | 20-500K | 100-2.5M | 200-5M | 200-5M | 400-10M | 500-12.5M | ||||||||
| DV2TRV**** | 25-500K | 125-2.5M | 250-5M | 250-5M | 500-10M | 625-12.5M | ||||||||
| DV1RV | 50-170K | 250-830K | 500-1.7M | 500-1.7M | 1K-3.3M | 1.25K-4.2M | ||||||||
| RVDVE | 50-170K | 250-830K | 500-1.7M | 500-1.7M | 1K-3.3M | 1.25K-4.2M | ||||||||
| RVT | 50-100K | 250-500K | 500-1M | 500-1M | 1K-2M | 1.25K-2.5M | ||||||||
| DV3THA*** | 40-1M | 200-5M | 400-10M | 400-10M | 800-20M | 1K-25M | ||||||||
| DV2THA**** | 50-1M | 250-5M | 500-10M | 500-10M | 1K-20M | 1.25K-25M | ||||||||
| DV1HA | 100-300K | 500-1.7M | 1K-3.3M | 1K-3.3M | 2K-6.7M | 2.5K-8.3M | ||||||||
| HADVE | 100-300K | 500-1.7M | 1K-3.3M | 1K-3.3M | 2K-6.7M | 2.5K-8.3M | ||||||||
| HAT | 100-200K | 500-1M | 1K-2M | 1K-2M | 2K-4M | 2.5K-5M | ||||||||
| DV3THB*** | 160-4M | 800-20M | 1.6K-40M | 1.6K-40M | 3.2K-80M | 4K-100M | ||||||||
| DV2THB**** | 200-4M | 1K-20M | 2K-40M | 2K-40M | 4K-80M | 5K-100M | ||||||||
| DV1HB | 400-1.3M | 2K-6.7M | 4K-13.3M | 4K-13.3M | 8K-26.7M | 10K-33.3M | ||||||||
| HBDVE | 400-1.3M | 2K-6.7M | 4K-13.3M | 4K-13.3M | 8K-26.7M | 10K-33.3M | ||||||||
| HBT | 400-800K | 2K-4M | 4K-8M | 4K-8M | 8K-16M | 10K-20M | ||||||||
