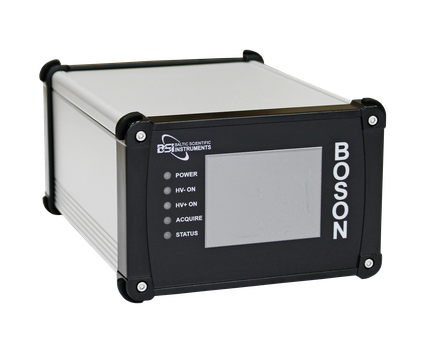

BSI BOSON Multi Channel Analyzer

Shaping time constant: 4 shaping time constant 0,5...24 us (by request))

Coarse gain: 5,10,20,40,80,160,320,640 (by request)

Fine gain: 1 ... 2

Input signal polarity: +/-

TRP preamplifier support: Yes

Integral nonlinearity: +/- 0,025%

Differential nonlinearity: <1%

Gain temperature coefficient: <50 ppm/0 C

MCA, chn: 16k

Input count rate: up to 200000cps

Power preamp: +/- 12В 60mA; +/- 24В 40mA

HV out: +/-5000 V or +/-2000 V /0.5mA

Power supply: +9... 18 V; 1 А

Consumed power: 12 W

Indication: TFT color touchscreen 3.2"

Communication interface: USB; Ethernet; RS-232 or I/O control by request
