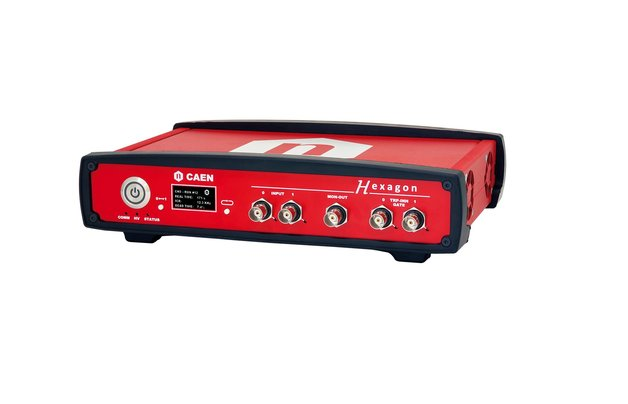

BSI HEXAGON Digital Multi Channel Analyzer

- Operating Modes

Pulse Height Analysis (PHA)

List mode (pulse height and time stamp for each event)

Oscilloscope mode

OMCS (Multichannel Scaling) mode

- Digital Signal Processing

Trapezoidal filter (rise time 0 - 20µs and flat top 0 - 10µs)

Manual trigger threshold adjustment

Manual AC coupled input signal pole/zero adjustment

Baseline restorer

Fast Discriminator

Manual fast discriminator threshold adjustment

Pile up rejection and Live Time correction

- ADC

Resolution:16 bits

Sampling rate: 100 MS/s

- Analog Input

BNC connector

DC and ADC coupled

Positive and negative signals accepted

Programmable coarse gain (x1, x2, x4, x8, x16, x32, x64, x128, x256, x496)

Programmable fine gain (range 0.8 - 2.2 with steps of 0.001)

Gain attenuator (x4)

Programmable DC offset adjustment in the full scale range

- High Voltage Power Supply

SHV connector

V set/I set: ±5 kV/300 µA

HV polarity adjustable

Voltage ripple: 3 mmVpp (Min.), 5 mVpp (Max.)

User configurable Ramp-Up/Ramp-Down rates independently for each channel: 1÷ 500 V/s range in steps of 1 V/s

User configurable HV parameters independently for each channel

OverVoltage/UnderVoltage alarms

OverCurrent/OverTemperature alarms

Channel Inhibit on DB9 and dedicated BNC connectors

Voltage limit, Vmax, software selectable

- Coincidence Modes

Single channel mode (uncorrelated)

Board coincidence (channel 0 con channel 1)

Board anti-coincidence (channel 0 con channel 1)

External Coincidence (GATE)

External anti-coincidence (INH)

- Mechanical: 237 W x 51 H x 195 L mm3

Brochure
