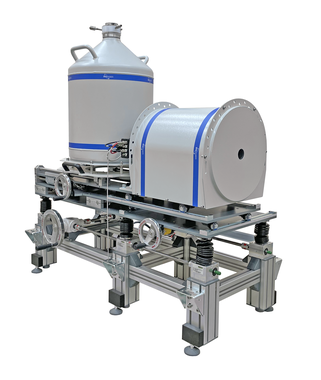

BSI PGNAA Prompt Gamma Neutron Activation Analysis Spectrometer (100 keV ~ 8000 keV)

Active shielding:

Scintillator material: Bi4Ge3O12

Typical Energy resolution at 662 keV FWHM: 6-7 %

Density: 7.13 g/cm3

Energy range: from 100 keV to 8000 keV

Scintillator shape: Four-section cylinder

Scintillator thickness: 25 mm

Built-in photomultipliers: Located in magnetic screens

Passive shielding:

Design: Modular, dismantlable

Lead: Low background

Lead wall thickness: 100mm

Inner copper shell thickness: 2mm

Collimators: By request

Adjustable supporting table:

Payload of the platform: 800kg

Movement of the platform: Mechanical

Movement axes: 3 axes

Movement distance per each axe: 100mm

Movement step: < 1mm

Information above is for reference. Modifications available by request.

Application

PGNAA Spectrometer is intended for:

Analysis of the radionuclide composition of samples containing trace amounts of radionuclides;

Search for decay products of radionuclides of anthropogenic or natural origin;

High registration efficiencies and low detection limits are achieved with;

Reduction of natural background levels through the use of materials purified from radionuclides;

Increase in peak contrast due to active suppression of Compton scattering quanta.

 PGNAA Spectrometer is applicable in:

Mining and Mineral Exploration: For accurate and rapid elemental analysis of ores and minerals.

Environmental Monitoring: Detecting and quantifying pollutants in soil and water.

Agriculture: Analyzing soil composition to optimize fertilizer use and crop yields.

Petrochemical Industry: Monitoring elemental composition in crude oil and its derivatives.

Geological Research: Studying rock and sediment samples for scientific research.

Pharmaceutical Industry: Ensuring the purity and composition of raw materials and finished products.

Academic and Research Institutions: Conducting advanced research in various scientific fields.

COMPLETE SET

Gamma-ray detection unit

HPGe detector with LN2 or electrical or hybrid cooling

State-Of-Health Preamplifier (SHP)

Electronics

Double-channel Multichannel Analyzer (MCA)

Additional Power Supply for Active Shield

Software

Analytical software GammaPRO

Active shielding

Ring scintillation assembly around the HPGe detector (4 scintillators and 4 photomultipliers)

Passive shielding

Lead passive protection (thickness 100 mm)
