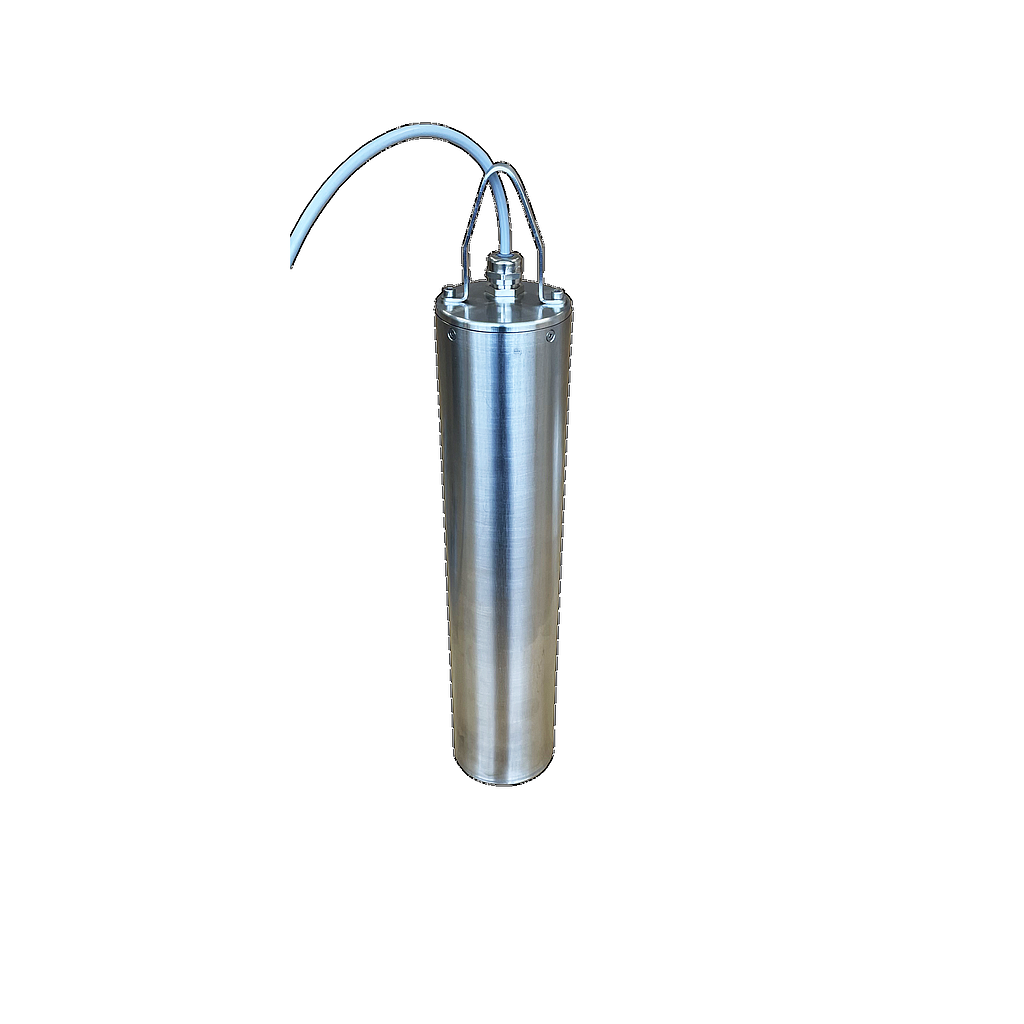

BSI WaterSPEC Dose rate meter and gamma radionuclide identification (80 – 3000 keV)

Detector type: NaI(Tl) Ø51 × 51 mm; (LaBr3, CeBr3, SrI2 – optional)

Measured energies range: 80 – 3000 keV

Gamma dose rate measuring range: from 10 nSv/h to 0.1 mSv/h

Relative energy resolution on the line 661,7 keV: < 8% for NaI(Tl); < 3.5% for SrI2

MCA channels: 1024

Power supply voltage: 4.5 – 18 V

Data transfer interface: RS-485

Shell protection level: IP68

List of identified radionuclides: Ce-144, Te-132, I-131, Ba-140, Cs-134, Cs-137, Zr-95,Mn-54, Co-60, La-140

Operation temperature: 0 °C ÷ +30 °C

Dimensions: 76 × 420 mm

Weight::

- without a cable: 2.8 kg

- with a cable 20 m: 3.7 kg

Brochure
