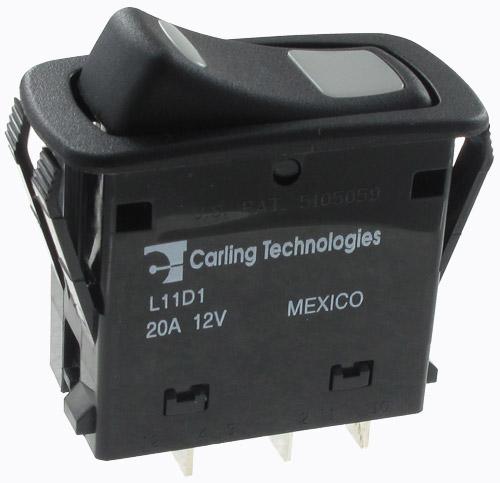

Carling Technologies L1111S00A-AZZ00-000 Sealed Rocker Switch L-SERIES ROCKER SWITCH W/

Life: 100000 Cycle

Width: 25.91 mm

Height: 36.83 mm

Legend: No Legend

Length: 50.04 mm

Actuator: Rocker

IP Rating: IP67

Illuminated: Non-Illuminated

Unit Weight: 37 g

Contact Form: SPST

Panel Cutout: 44.02 mm x 22.02 mm

Power Rating: 400 mVA

Mounting Type: Snap In

Actuator Style: Rocker

Current Rating: 400 mA

Mounting Style: Panel Mount

Panel Thickness: 0.76 mm to 3.96 mm

Switch Function: ON - NONE - OFF

Housing Material: Nylon

Actuator Material: Thermoplastic (TP)

Termination Style: Quick Connect

Voltage Rating DC: 28 VDC

Flammability Rating: UL 94 V-0

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
