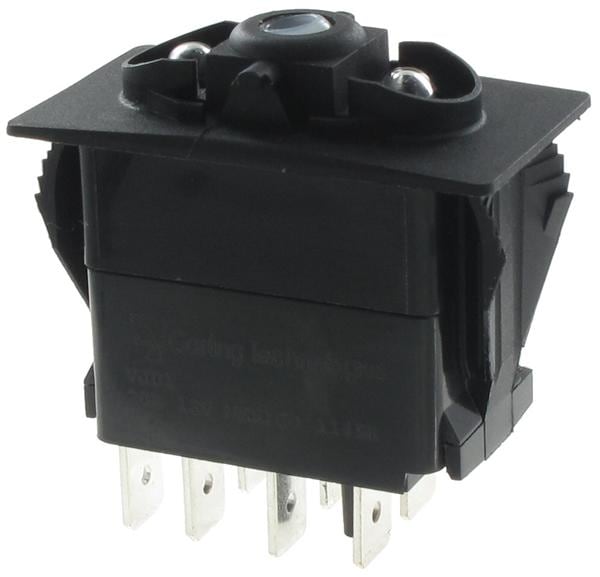

Carling Technologies VJD1BH0C-CGC00-0 Snap-In Rocker Switch Rocker Switch, 20A 12VDC, On-Off-On, 12VDC Superbright Green LED, QC

Life: 150000 Cycle

Actuator: Rocker

IP Rating: IP68

Lamp Type: LED

Illuminated: Illuminated

Unit Weight: 46.050 g

Contact Form: DPDT

Panel Cutout: 36.83 mm x 21.08 mm

Mounting Type: Snap In

Terminal Seal: Sealed

Actuator Style: Convex

Current Rating: 20 A

Mounting Style: Panel Mount

Actuator Length: 49.09 mm

Contact Plating: Silver

Switch Function: ON - OFF - ON

Housing Material: Polyester

Actuator Material: Thermoplastic (TP)

Termination Style: Quick Connect (0.250")

Voltage Rating DC: 12 VDC

Illumination Color: Green

LED Supply Voltage: 24 VDC

Flammability Rating: UL 94 V-0

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
