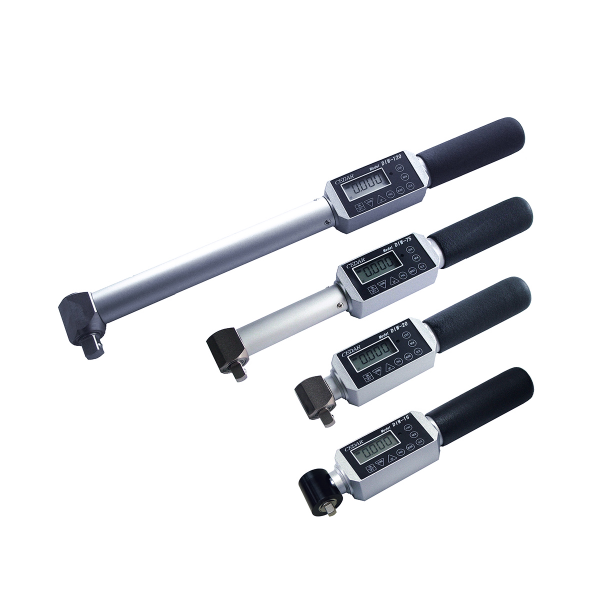

CEDAR DIW-20 Digital Torque Driver (0.20～20 N/m)

Accuracy guarantee range:

0.20～20 N/m

2.0～200 kgf/cm

2.0～174 lbf/in

Accuracy Reading: ±0.5% (499 or less digit±3digit)

Display: The 4 figures digital display of LCD

Measurement Mode: peak to peak (PP), Track (TR), Peak-down (PD), Real-time Output (C)

The Maximum, minimum, and the average value: The data number, the maximum, the minimum value, and the average value of memory data are displayed.

Data memory counts: 800 data

Data output: ASCII format (baud rate 19200)

Setup of count: 1 to 99 count (count in a clockwise direction)

Power supply: Ni-MH chargeable battery 1.2V×4cells 800mAh

Charge time / use time: Charge 5 hour /, continuation about 12-hour use

Auto-power-off: After the neglect during 10 minutes

Bit / Socket part: 9.5

Weight: (about) 470g

Datasheet
