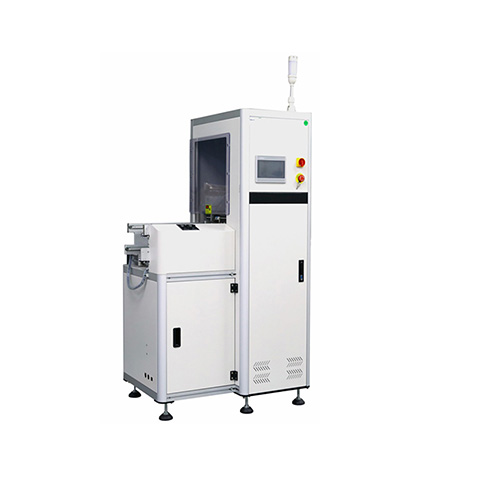

Censtar BN-M-TN Ng Buffer Conveyor (1000*910*1600, 50*50-330*250)
Manufacturer: Censtar Model: BN-M-TN - Contact
Dimension(mm): 1000*910*1600
PCB size（mm): 50*50-330*250
Number of stocks: 15pcs
Cycle time: 10s
Power supply: AC 220V±10V, 50/60HZ
Power: Max 250VA
Air pressure: 4-6bar
Air consumption: 10itr/min max
Transport height: 900±20mm(or customer specified)
PCB direction: L-R or R-L (optional)
Belt type: 4MM anti-static flat belt
Weight: 260kg

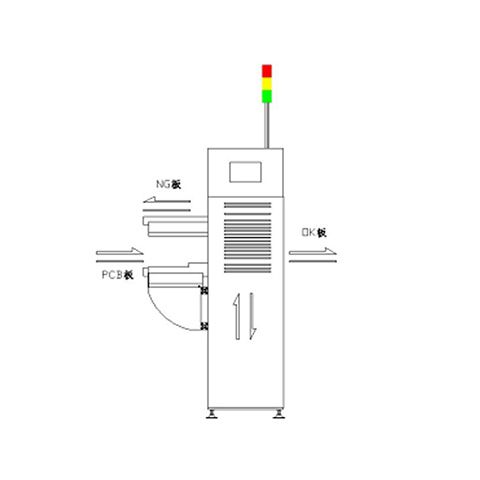

This device can buffer the NG and OK boards from AOI or SPI inspection machines. The OK board will flow into the next program, and the NG board will flow to the upper layer of the machine and send it to the machine for manual confirmation.
Features
1.PLC + LED touch screen control, easy to operate.
2.FIFO: First in, First out, LIFO:Last in, First out and Pass mode.
3.Smooth and precise width adjustment (leadscrew).
4.Fast, smooth and precise search and location.
5.Small footprint.
6.With SMEMA signal.
