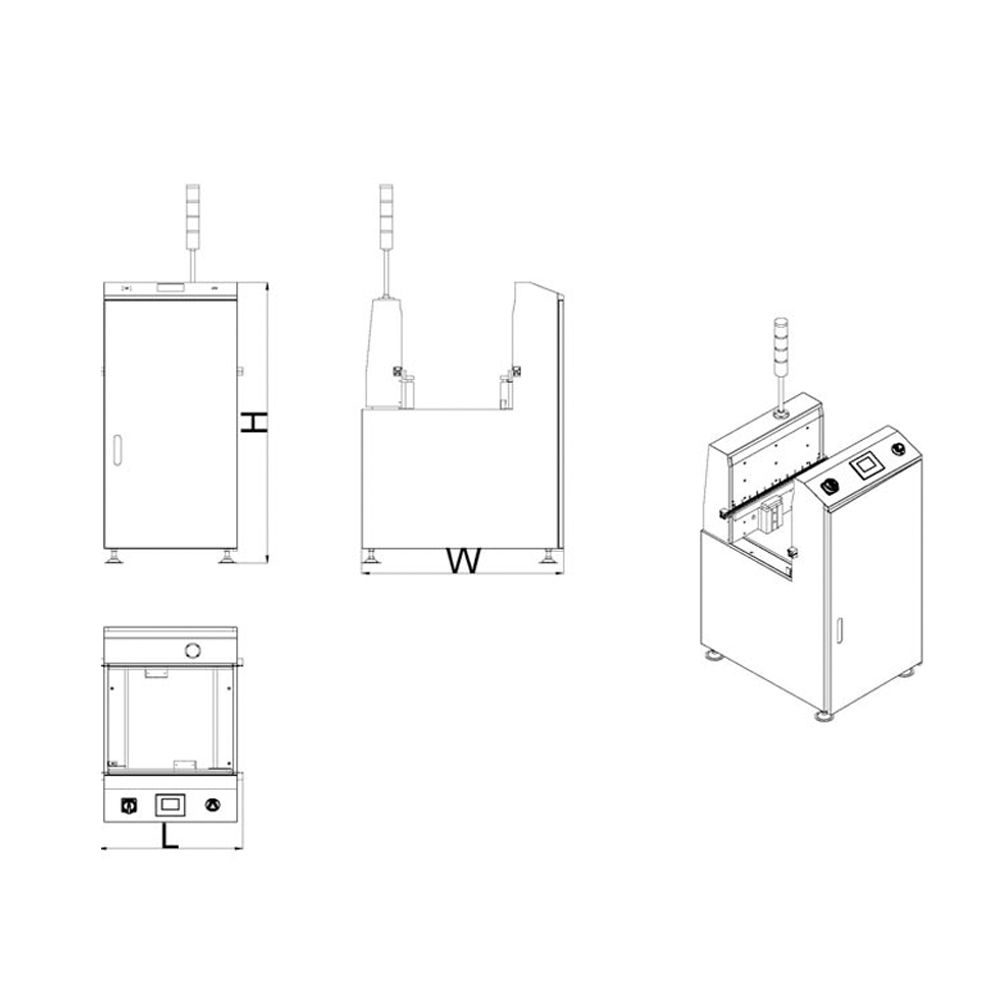

Dimension(L*W*H): 503*898*1200mm
PCB size(L*W): 50*50-460*460mm
Maximum PCBs capacity: 400pcs(0.6mm thick PCB)
Quantity of rail: Single rail
Belt type: 4mm flat belt
Load bearing: 2kg/PCB
Transport height: 900±20mm(or custimzie)
Cycle time: 10 Seconds or specity
Power supply: AC 220V±10V, 50/60HZ
Power: Max 100VA
Air prssure: 4-6bar
Air consumption: 10itr/min max
Screen size: 7 inch
PCB thickness : Minimum 0.6mm thickness
Transport direction: L-R or R-L
CE: Yes
PLC: Yes
SMEMA: Yes
Weight: 180kg

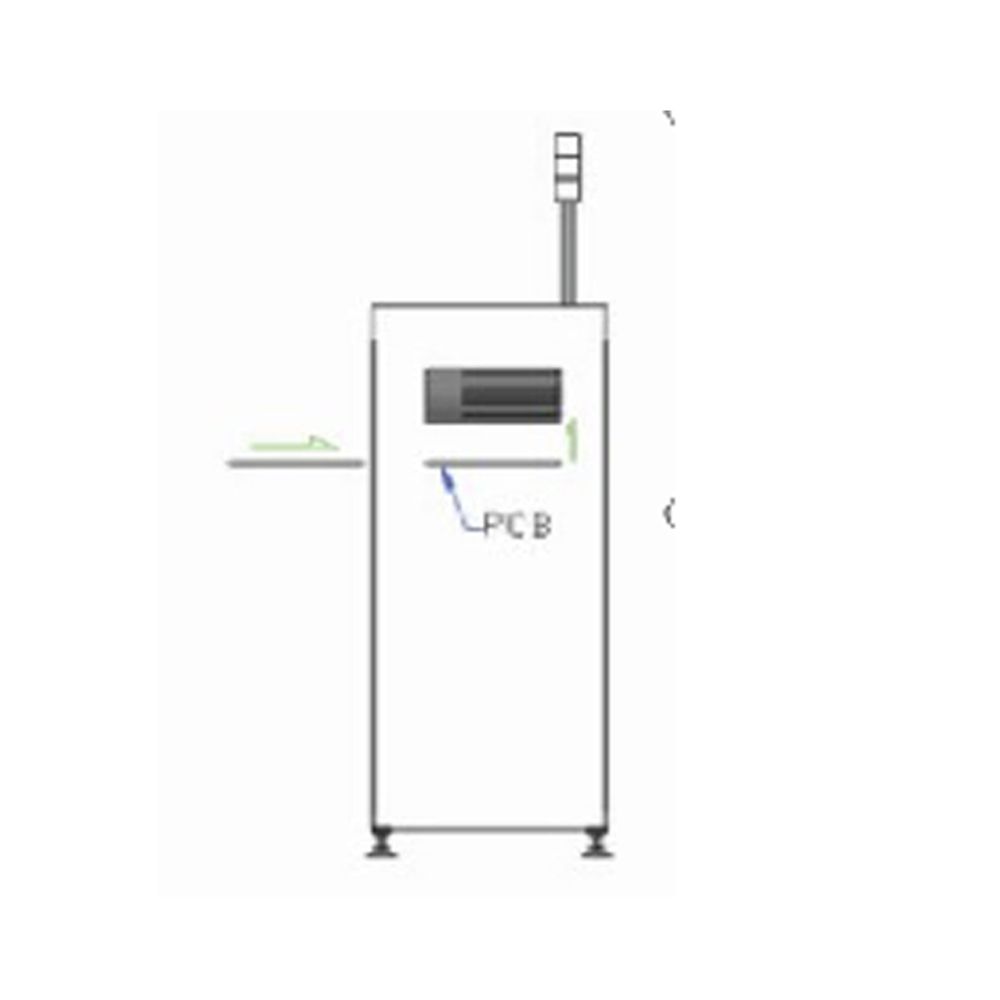

This equipment is used for PCB bare board material unloader operation on the production line.
Features
1.User friendly soft touch LED membrance control panel or touch screen can be selected
2.Aluminum structure ,bottom weight design,not easy to shift
3.By pass mode provide
4.Smooth and precise translation (stepper motor)
5.Increased load without interference
6.Minimize clearance between conveyor
7.SMEMA compatible
