Dimension（mm）:2330*1950*1250
PCB size(mm): 50*50-530*460
Magazine（mm): 535*530*563
Magazine quantity: Up: 1: Down: 1
Mazagine change: Approx. 30 Seconds or specity
Indexing pitch: 10. 20. 30. 40mm selectable
Power supply: AC 220V±10V, 50/60HZ
Power: Max 300VA
Air pressure: 4-6bar
Air consumption: 10itr/min max
Transport height: 900±20(or custimzie)
PCB direction: L-R or R-L
Weight: 400kg

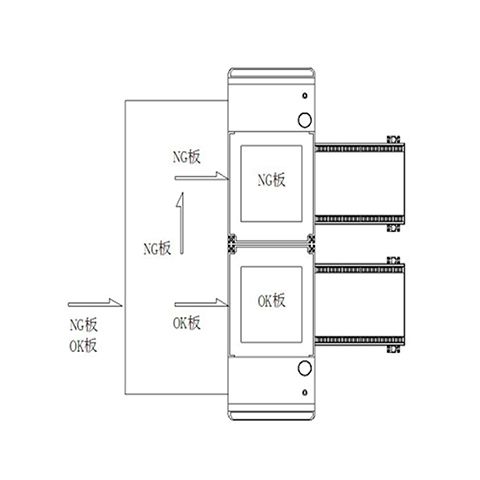

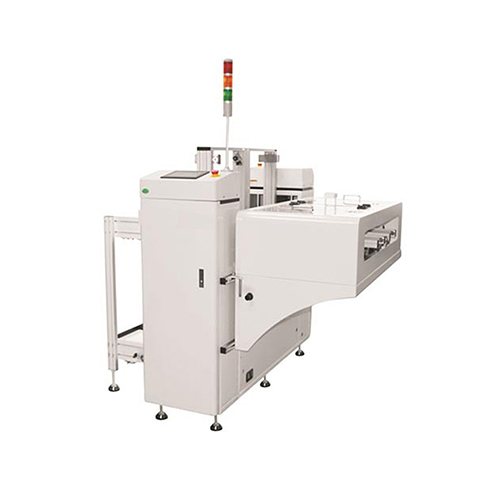

This equipment is used for the receiving operation of the PCB board of the SMT production line, and it is suitable for receiving the NG board and the OK board after the AOI behind the reflow.
Features
1.Panasonic PLC+Touch screen control , easy to operate.
2.Design with firm structure.
3.The upper and lower air clamps ensure the location of the material box accurately.
4.Special gas path design ensures that the PCB panel is not pushed.
5.With SMEMA signal.
