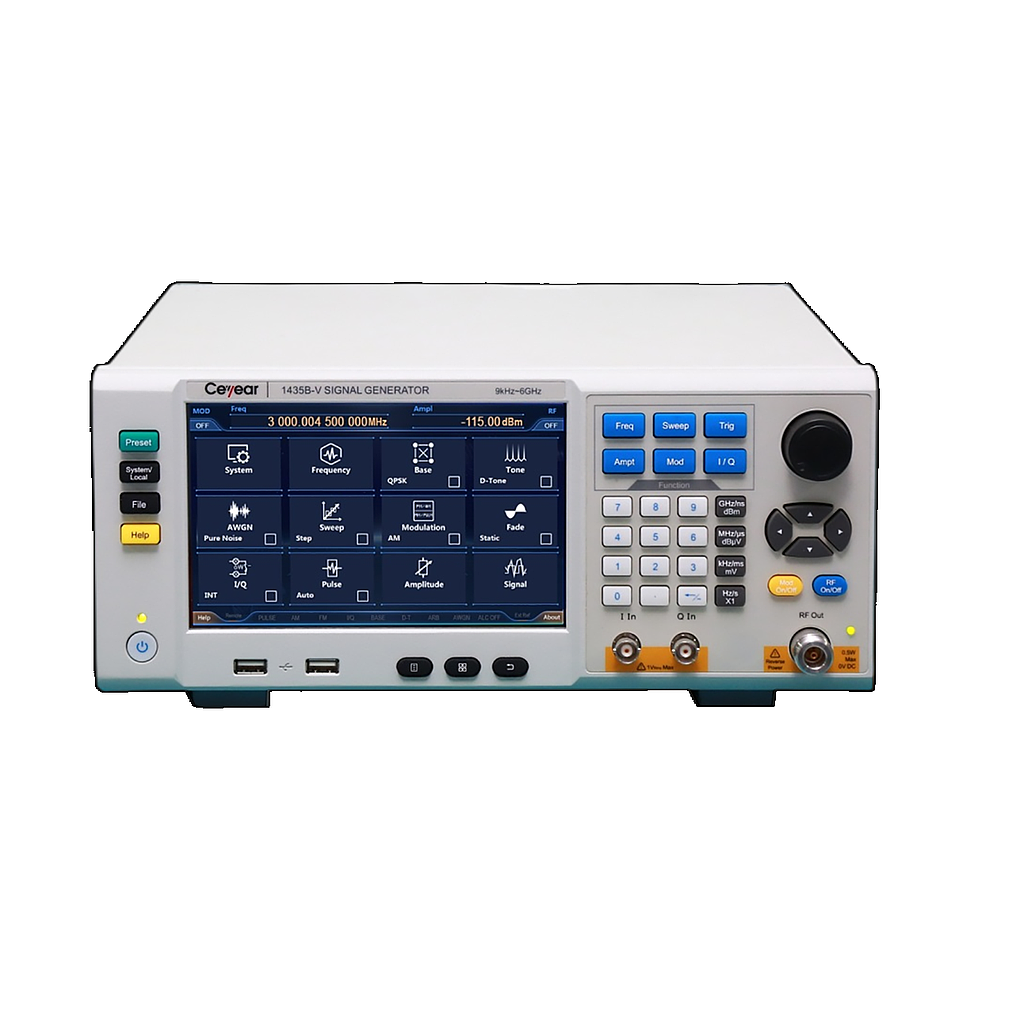

Frequency Range: 9 kHz to 40 GHz,
Frequency Resolution: 0.001 Hz
Frequency Switching Time: ≤ 1ms (typical)
Time Base Aging Rate (typ.)
Standard: ±5×10^-7/year (after continuous switch-on for 30 days)
High stability time base option H10:
• ±5×10^-8/year (after continuous switch-on for 30 days),
• ±5×10^-10/day(after continuous switch-on for 30 days)
Reference Output
• Frequency: 10MHz
• Power: >+4dBm, to 50Ω load
Reference Input
• Frequency: 1MHz – 50MHz, step 1Hz
• Power: 0dBm to +7dBm, impedance 50Ω
Scanning Mode: Step scan, List scan
Scan Dwell Time: 100μs – 100s
Minimum Output Power
• Standard: -15dBm (can be set -20dBm)
• Option H01: -110dBm (can be set -135dBm)
Maximum Output Power (Standard)
• 9kHz ≤ f ≤ 3GHz: 14dBm
• 3GHz < f≤ 17GHz: 13dBm
• 17GHz < f≤ 40GHz: 11dBm
Maximum Output Power (Option H08)
• 9kHz ≤ f ≤ 3GHz: 20dBm
• 3GHz < f≤ 17GHz: 17dBm
• 17GHz < f≤ 40GHz: 15dBm
Power Resolution: 0.01 dB
VSWR (typ.)
• 9kHz ≤ f ≤ 3GHz: <1.7
• 3GHz < f ≤ 13GHz: <1.6
• 13GHz < f ≤ 20GHz: <1.8
• 20GHz < f ≤ 40GHz: <1.6
Maximum Rerverse Power: 0.5W (0V DC) (rated value)
Haimonic Wave (at +10dBm)
• 9kHz ≤ f ≤ 10MHz: < -23dBc
• 10MHz < f ≤ 2GHz: < -30dBc
• 2GHz < f ≤ 6GHz: < -30dBc (S1435B)
• 2GHz < f ≤ 20GHz: < -55dBc
• 20GHz < f ≤ 40GHz: < -50dBc (typ.)
Sub-harmonic Wave (at +10dBm)
• 9kHz ≤ f ≤ 6GHz: None
• 6GHz < f ≤ 12GHz: < -60dBc
• 12GHz < f ≤ 24GHz: < -55dBc
• 24GHz < f ≤ 40GHz: < -50dBc
Non-Harmonic Wave (Standard)
• 9kHz ≤ f ≤ 250MHz: < -54dBc
• 250MHz < f ≤ 3GHz: < -62dBc
• 3GHz < f ≤ 6GHz: < -56dBc
• 6GHz < f ≤ 12GHz: < -50dBc
• 12GHz < f ≤ 24GHz: < -44dBc
• 24GHz < f ≤ 40GHz: < -38dBc
(at 0dBm, 10kHz Frequency Offset)
Non-Harmonic Wave (Low Phase Noise Option H06)
• 9kHz ≤ f ≤ 250MHz: < -60dBc
• 250MHz < f ≤ 3GHz: < -77dBc
• 3GHz < f ≤ 6GHz: < -71dBc
• 6GHz < f ≤ 12GHz: < -65dBc
• 12GHz < f ≤ 24GHz: < -59dBc
• 24GHz < f ≤ 40GHz: < -53dBc
(at 0dBm, 10kHz Frequency Offset)
SSB Phase Noise (Carrier 1GHz, at +10dBm)
Standard:
• ≤-83 dBc/Hz @ 100Hz offset
• ≤-115 dBc/Hz @ 10kHz offset
Low Phase Noise Option H06:
• ≤-83 dBc/Hz @ 100Hz offset
• ≤-113 dBc/Hz @ 1kHz offset
• ≤-132 dBc/Hz @ 10kHz offset
• ≤-132 dBc / Hz @ 100kHz offset
Frequency Modulation (Option H02)
• Maximum frequency offset: N × 16MHz (N is the number of fundamental harmonic wave)
• Accuracy (1kHz modulation rate, frequency offset: N × 500kHz): ± (2% × set frequency offset + 20Hz)
• Modulation rate (3dB bandwidth, frequency offset: N × 500kHz): DC – 7MHz
• Distortion (1kHz rate, frequency offset: N × 500kHz): <0.4%
Phase Modulation (Option H02)
• Maximum phase offset: N × 16rad (N is the number of fundamental harmonic wave)
• Accuracy (1kHz modulation rate, frequency offset: N × 500kHz): ± (2% × set phase offset + 0.01rad)
• Modulation rate (3dB bandwidth, phase offset: N × 8rad): DC – 1MHz
• Distortion (1kHz modulation rate, phase offset: N × 8rad): <0.4%
Amplitude Modulation (Option H02)
• Maximum depth: >90%
• Modulation rate: (1kHz modulation rate, 30% modulation depth): ± (4% × set depth +1%)
• Modulation rate (bandwidth: 3dB; modulation depth: 30%; frequency test points: 1GHz, 5GHz, 20GHz, 40GHz): DC – 100kHz
• Distortion: (1kHz modulation rate, linear mode, total harmonic distortion, 30% modulation depth): <2%
Pulse Modulation (Option H03)
• Switching ratio: >80dB
• Rise and fall time: <10ns
• Minimum pulse of internal fixed amplitude: 1μs
• Minimum pulse of non-fixed amplitude: 100ns
Narrow Pulse Modulation (Option H04)
• Switching ratio: >80dB
• Rise and fall time: <10ns
• Minimum pulse of internal fixed amplitude: 1μs
• Minimum pulse of non-fixed amplitude: 20ns
Internal Analog Modulation Signal Generator (Option H02)
Providing three independent signals for frequency/phase modulation, amplitude modulation and low frequency output signals.
• Waveform: sine wave, square wave, triangle wave, sawtooth wave
• Frequency range: sine wave 0.1Hz – 10MHz, square wave, triangle wave, sawtooth wave 0.1Hz – 1MHz
• Frequency resolution: 0.1Hz
• Low frequency output: amplitude 0-5V peak (rated value), to 50Ω load
Internal Pulse Generator (Option H03)
• Pulse width: 20ns – (42s-10ns) (rated value)
• Pulse period: 40ns – 42s (rated value)
• Resolution: 10ns
Multi-Function Function Generator (Option H05)
RF Output Port: 2.4mm (male), impedance 50Ω
Power Consumption: < 300W
Dimension (max.)
• 330 (W) × 147 (H) × 397 (D) mm (excluding the handle)
• 420 (W) × 147 (H) × 445 (D) mm (including the handle)
Weight: < 12kg (the weight varies with the model and option configuration)
Power Supply: 100 – 120VAC, 50 – 60Hz; or 200 – 240VAC, 50 – 60Hz (self-adaptive)
See more detail information in the Datasheet
