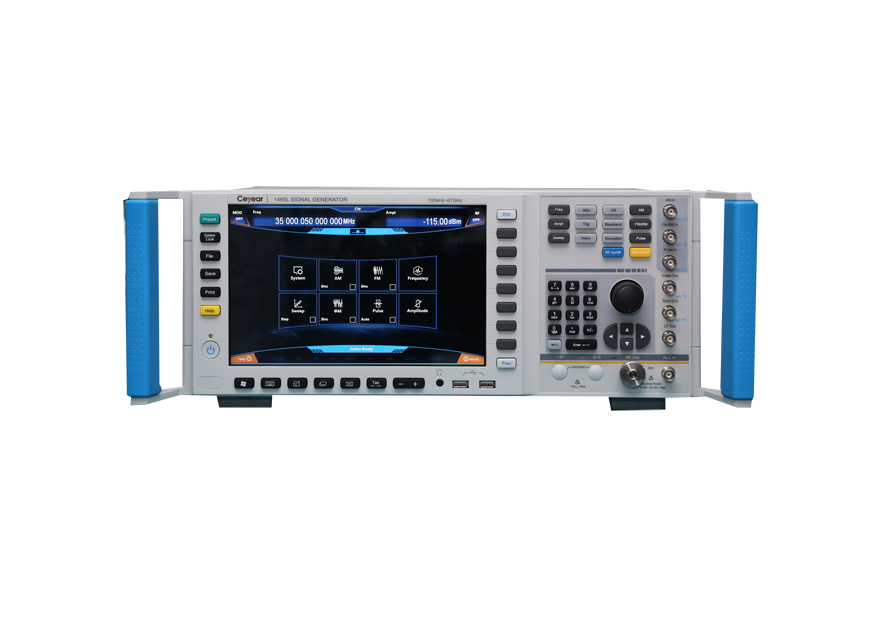

Ceyear 1465D Signal Generator (100 kHz ~ 20 GHz)

Frequency Range: 100 kHz to 20 GHz,

Frequency Resolution: 0.001 Hz

Frequency Switching Time: <20ms (typ.)

Time Base Aging Rate: ±5×10-10/day(after continuous switch-on for 30 days) (typ.)

Reference Output

•  Frequency: 10MHz

•  Power: >+4dBm, to 50Ω

Reference Input

•  Frequency: 1-50 MHz, 1Hz step

•  Power: -5dBm to +10dBm, 50Ω impedance

Sweep Mode: Step sweep, list sweep, analog sweep, power sweep

High Precision Analog Sweep (Option H03)

Max. sweep speed:

•  100kHz ≤ f ≤ 500MHz: 25MHz/ms

•  500MHz < f ≤ 1GHz: 50MHz/ms

•  1GHz < f ≤ 2GHz: 100MHz/ms

•  2GHz < f ≤ 3.2GHz: 200MHz/ms

•  3.2GHz < f : 400MHz/ms

•  Sweep accuracy: ±0.05% Sweep width (for 100ms, within the maximum width of 100ms as specified)

Minimum Output Power

Standard: -20 dBm

•  1465D + option H06: -10 dBm

Option H01: -110 dBm (-135 dBm configurable)

•  1465D + option H06: -90 dBm (-125 dBm configurable)

Maximum Output Power (Standard)

•  100kHz ≤ f ≤ 20GHz: 15 dBm

1465D + option H06:

•  10MHz ≤ f ≤ 20GHz: 28 dBm

Maximum Output Power (Option H01 Programmable Step Attenuator)

•  100kHz ≤ f ≤ 20GHz: 15 dBm

1465D + option H06:

•  10MHz ≤ f ≤ 20GHz: 27 dBm

Maximum Output Power (Option H05 High-power Output)

•  100kHz ≤ f ≤ 20GHz: 20 dBm

Maximum Output Power (Option H05 + H01A/B)

•  100kHz ≤ f ≤ 20GHz: 20 dBm

Power Resolution: 0.01 dB

Power Temperature Stability: 0.02 dB/ºC   (typical)

VSWR

•  100kHz ≤ f ≤ 20GHz: <1.6

•  20GHz < f ≤ 40GHz: <1.8

•  40GHz < f ≤ 67GHz: <2.0

Harmonic Wave (Standard)

•  100kHz ≤ f ≤ 10MHz: < -25dBc

•  10MHz < f ≤ 2GHz: < -30dBc

•  2GHz ＜ f ≤ 6GHz: < -30dBc  (S1465B)

•  2GHz ＜ f ≤ 20GHz: < -55dBc

•  20GHz ＜ f ≤ 40GHz: < -50dBc (typ.)

(at +10dBm or Max. specified output power, whichever is lower)

Harmonic Wave (Option H06 Enhanced High-power)

•  10MHz < f ≤ 2GHz: < -25dBc

•  2GHz < f ≤ 9GHz: < -35dBc

•  9GHz < f ≤ 14GHz: < -27dBc

•  14GHz < f ≤ 20GHz: < -30Bc

(at +10dBm or Max. specified output power, whichever is lower)

Sub-harmonic Wave (Standard)

•  100kHz ≤ f ≤ 10GHz: None

•  10GHz < f ≤ 20GHz: < -60dBc

•  20GHz < f ≤ 67GHz: < -50dBc

(at +10dBm or Max. specified output power, whichever is lower)

Non-harmonic Wave (Standard)

•  100kHz ≤ f ≤ 250MHz: < -58dBc

•  250MHz < f ≤ 3.2GHz: < -74dBc

•  3.2GHz ＜ f ≤ 10GHz: < -62dBc

•  10GHz ＜ f ≤ 20GHz: < -56dBc

•  20GHz ＜ f ≤ 40GHz: < -50dBc

•  40GHz ＜ f ≤ 67GHz: < -44dBc

(At 0dBm, beyond 3kHz offset)

Non-harmonic Wave (Option H04 Ultra Low Phase Noise)

•  100kHz ≤ f ≤ 250MHz: < -58dBc

•  250MHz < f ≤ 3.2GHz: < -80dBc

•  3.2GHz ＜ f ≤ 10GHz: < -70dBc

•  10GHz ＜ f ≤ 20GHz: < -64dBc

•  20GHz ＜ f ≤ 40GHz: < -58dBc

•  40GHz ＜ f ≤ 67GHz: < -52dBc

(At 0dBm, beyond 3kHz offset)

SSB Phase Noise (Carrier 1GHz, +10dBm or Max. Output Power)

•  -101 dBc/Hz @ 100Hz offset

•  -121 dBc/Hz @ 1kHz offset

•  -130 dBc/Hz @ 10kHz offset

•  -130 dBc/Hz @ 100kHz offset

Option H04:

•  -62 dBc/Hz @ 1Hz offset

•  -91 dBc/Hz @ 10Hz offset

•  -105 dBc/Hz @ 100Hz offset

•  -123 dBc/Hz @ 1kHz offset

•  -138 dBc/Hz @ 10kHz offset

•  -138 dBc/Hz @ 100kHz offset

RF Output Port:  3.5mm (male), N (female) (option 91), impedance 50Ω

Dimension (max.)

•  426 (W) × 177 (H) × 460 (D) mm (excluding the handle)

•  510 (W) × 190 (H) × 534 (D) mm (including the handle)

Weight: < 28kg (the weight varies with the model and option configuration)

Power Supply: 100-120VAC, 50-60Hz; or 200-240VAC, 50-60Hz (self-adaptive)

See more detail information in the Datasheet
