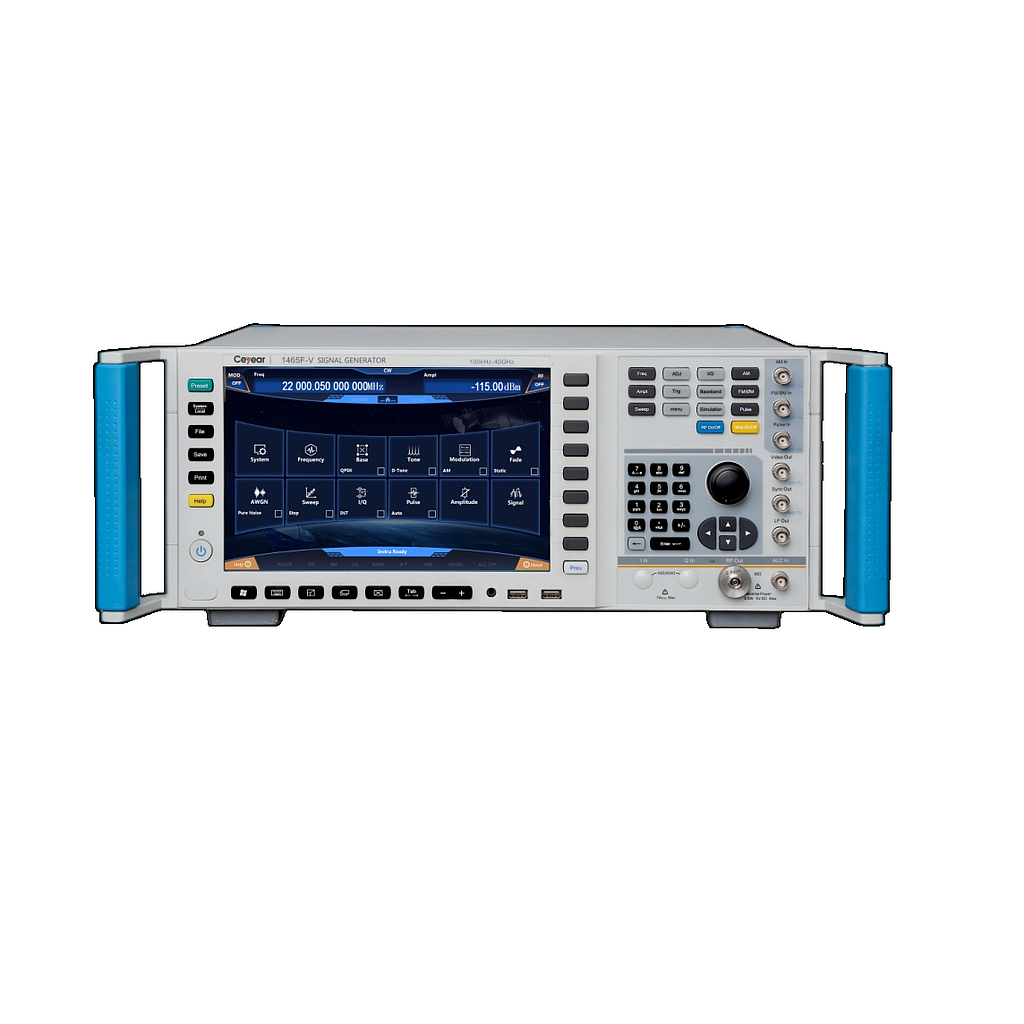

Ceyear 1465F-V Signal Generator (100 kHz ~ 40 GHz)

Frequency Range: 100 kHz to 40 GHz, (max. frequency 44 GHz)

Frequency Resolution: 0.001 Hz

Frequency Switching Time: <20ms (typ.)

Time Base Aging Rate: ±5×10-10/day (after continuous switch-on for 30 days) (typ.)

Reference Output

•  Frequency: 10MHz

•  Power: >+4dBm, to 50Ω

Reference Input

•  Frequency: 1-50 MHz, 1Hz step

•  Power: -5dBm to +10dBm, 50Ω impedance

Sweep Mode: Step sweep, List sweep, Analog sweep, Power sweep

High Precision Analog Sweep (Option H03)

Max. sweep speed:

•  100kHz ≤ f ≤ 500MHz: 25MHz/ms

•  500MHz < f ≤ 1GHz: 50MHz/ms

•  1GHz < f ≤ 2GHz: 100MHz/ms

•  2GHz < f ≤ 3.2GHz: 200MHz/ms

•  3.2GHz < f : 400MHz/ms

Sweep accuracy: ±0.05% Sweep width (for 100ms, within the maximum width of 100ms as specified)

Minimum Output Power

Standard: -20 dBm

Option H01: -110 dBm (-135 dBm configurable)

Maximum Output Power (Standard)

•  100kHz ≤ f ≤ 40GHz: 10 dBm

Maximum Output Power (Option H01 Programmable Step Attenuator)

•  100kHz ≤ f ≤ 40GHz: 10 dBm

Maximum Output Power (Option H05 High-power Output)

•  100kHz ≤ f ≤ 9GHz: 18 dBm

•  9GHz ≤ f ≤ 30GHz: 15 dBm

•  30GHz ≤ f ≤ 40GHz: 12 dBm

Maximum Output Power (Option H05 + H01A/B)

•  100kHz ≤ f ≤ 9GHz: 18 dBm

•  9GHz ≤ f ≤ 30GHz: 15 dBm

•  30GHz ≤ f ≤ 40GHz: 12 dBm

Power Resolution: 0.01 dB

Power Temperature Stability: 0.02 dB/ºC   (typ.)

VSWR

•  100kHz ≤ f ≤ 2GHz: <1.4

•  2GHz < f ≤ 20GHz: <1.6

•  20GHz < f ≤ 40GHz: <1.8

•  40GHz < f ≤ 67GHz: <2.0

Harmonic Wave (Standard)

•  100kHz ≤ f ≤ 10MHz: < -25dBc

•  10MHz < f ≤ 2GHz: < -30dBc

•  2GHz < f ≤ 20GHz: < -55dBc

•  20GHz < f ≤ 40GHz: < -45dBc (typ.)

(at +10dBm or Max. specified output power, whichever is lower)

Sub-harmonic Wave (Standard)

•  100kHz ≤ f ≤ 10GHz: None

•  10GHz < f ≤ 20GHz: < -60dBc

•  20GHz < f ≤ 67GHz: < -45dBc

(at +10dBm or Max. specified output power, whichever is lower)

Non-harmonic Wave (Standard)

•  100kHz ≤ f ≤ 250MHz: < -58dBc

•  250MHz < f ≤ 3.2GHz: < -74dBc

•  3.2GHz ＜ f ≤ 10GHz: < -62dBc

•  10GHz ＜ f ≤ 20GHz: < -56dBc

•  20GHz ＜ f ≤ 28.5GHz: < -52dBc

•  28.5GHz ＜ f ≤ 40GHz: < -45dBc

•  40GHz ＜ f ≤ 60GHz: < -42dBc

(At 0dBm, beyond 3kHz offset)

Non-harmonic Wave (Option H04 Ultra Low Phase Noise)

•  100kHz ≤ f ≤ 250MHz: < -58dBc

•  250MHz < f ≤ 3.2GHz: < -80dBc

•  3.2GHz ＜ f ≤ 10GHz: < -70dBc

•  10GHz ＜ f ≤ 20GHz: < -64dBc

•  20GHz ＜ f ≤ 28.5GHz: < -52dBc

•  28.5GHz ＜ f ≤ 40GHz: < -45dBc

•  40GHz ＜ f ≤ 60GHz: < -42dBc

(At 0dBm, beyond 3kHz offset)

SSB Phase Noise (Carrier 1GHz, +10dBm or Max. Output Power)

Standard:

•  -101 dBc/Hz @ 100Hz offset

•  -121 dBc/Hz @ 1kHz offset

•  -130 dBc/Hz @ 10kHz offset

•  -130 dBc/Hz @ 100kHz offset

Option H04:

•  -62 dBc/Hz @ 1Hz offset

•  -91 dBc/Hz @ 10Hz offset

•  -105 dBc/Hz @ 100Hz offset

•  -123 dBc/Hz @ 1kHz offset

•  -138 dBc/Hz @ 10kHz offset

•  -138 dBc/Hz @ 100kHz offset

(Note: see more detail information in the ‘Resource’ – ‘Datasheet’)

Vector Modulation Accuracy

1465C/D/F-V:

•  50MHz – 40GHz: EVM(RMS%)<1.4%

(4Msps, root-Nyquist, α=0.3, QPSK, 0dBm)

Internal Modulation Bandwidth

Standard:

•  120MHz (Multi-tone, Tone quantity: 51, Frequency space: 2.4MHz, ±3dB bandwidth);

Option H31:

•  200MHz (Multi-tone, Tone quantity: 51, Frequency space: 4MHz, ±3dB bandwidth).

Option H36:

•  500MHz (Multi-tone, Tone quantity: 512, ±3dB bandwidth)

Option H37:

•  1GHz (Multi-tone, Tone quantity: 512, ±3dB bandwidth)

(Carrier 900MHz, 1.8GHz, 2.4GHz, 6GHz, 18GHz, 35GHz, 50GHz)

External Modulation Bandwidth: 200MHz (ALC OFF,  input 100mVrms sine to channel I, ±4dB bandwidth) (Carrier 900MHz, 1.8GHz, 2.4GHz, 6GHz, 18GHz, 35GHz, 50GHz)

External Wide Modulation Bandwidth (Option H33): 2GHz (ALC OFF,  input  100mVrms sine to channel I, ±6dB bandwidth) (Carrier 7GHz, 18GHz, 35GHz, 48GHz)

Internal Baseband Signal Generator

Channel quantities:

•  2 (I and Q)

Max. symbol rate:

•  Standard: 60Msps(Max. 4bit/symbol)

•  Option H31: 125Msps(Max. 4bit/symbol)

•  Option H36: 156.25Msps

•  Option H37: 312.5Msps

Baseband waveform internal memory:

•  Standard: 1GSa

•  Option H32: 2GSa

Modulation format：

•  PSK: BPSK, QPSK, OQPSK, π/4 DQPSK, D8PSK,   16PSK

•  QAM: 4, 16, 32, 64, 128, 256, 512, 1024

•  FSK: 2, 4, 8, 16

•  ASK

•  MSK

•  Arbitrary wave modulation.

Dual-tone mode max. frequency offset:

•  200MHz

EVM:

•  <1.0% (typ.)  (RMS%, Symbol rate 4Msps, root-Nyquist,   α=0.3, QPSK)

Arbitrary wave modulation data format:

•  Mat-File 5, ASCII, Binary, cap, csv

AWGN (Option S03)

•  Type: Pure noise, continuous wave interference, additive noise

•  Noise bandwidth: 120/200MHz

•  Signal noise setting range: 0 – 60dB

RF Output Port: 2.4mm (male), impedance 50Ω

Power Consumption: < 400W

Dimension (max.)

•  435 (W) × 178 (H) × 498 (D) mm (excluding the handle)

•  517 (W) × 192 (H) × 550 (D) mm (including the handle)

Weight: < 28kg (the weight varies with the model and option configuration)

Power Supply: 100-120VAC, 50-60Hz; or 200-240VAC, 50-60Hz (self-adaptive)

See more detail information in the Datasheet
