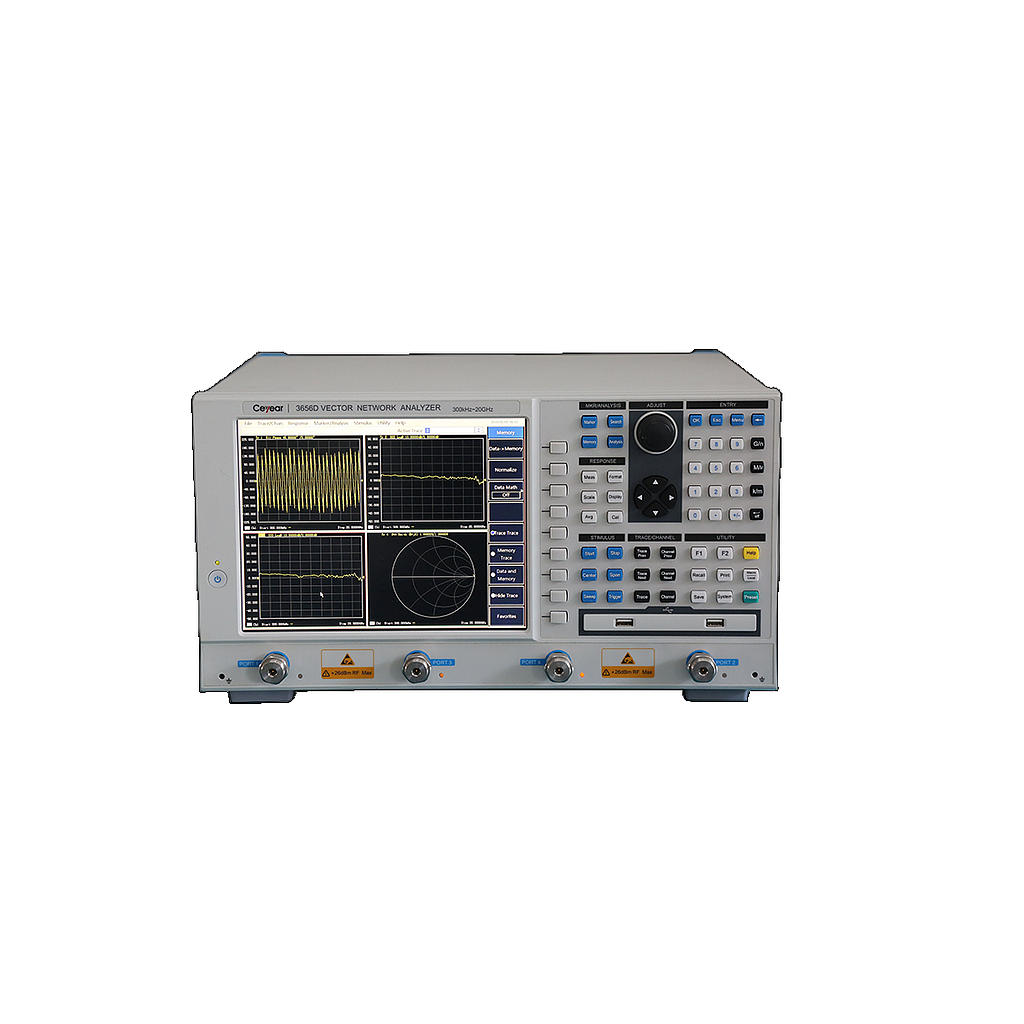

Ceyear 3656D Vector Network Analyzer (300 kHz ~ 20 GHz)

Frequency Range: 300 kHz ~ 20 GHz

Frequency Resolution: 1 Hz

Frequency Accuracy : ±1×10^-6 (23°C ± 3°C)

Dynamic Range: Up to 120dB

IF Bandwidth: 1MHz – 5MHz

Number of Built-In Ports: 2-port (standard), 4-port (option)

Measurement Point : 1 – 16001

Number of Measurement Receiver: 2 / 4

Reference Level Amplitude Setting

•  Range: ± 500dB

•  Resolution: 0.001dB

Reference Phase Setting

•  Range: ± 500°

•  Resolution: 0.01°

Time-base Reference Output

•  Output frequency: 10MHz

•  Output level: +10dBm ± 4dB

Measurement Fields: Frequency domain and Time domain

Display Format: Logarithmic amplitude, linear range, standing wave, phase, group delay, smith chart, polar diagram

Power Supply: 50 Hz 220 V AC / 60 Hz 110 V AC

Power Consumption : 150 W

Display: 10.4-inch high brightness LCD

Dimension: 435 (W) × 236.5 (H) × 410 (D) mm

Weight: 18 kg

See more detail information in the Datasheet
