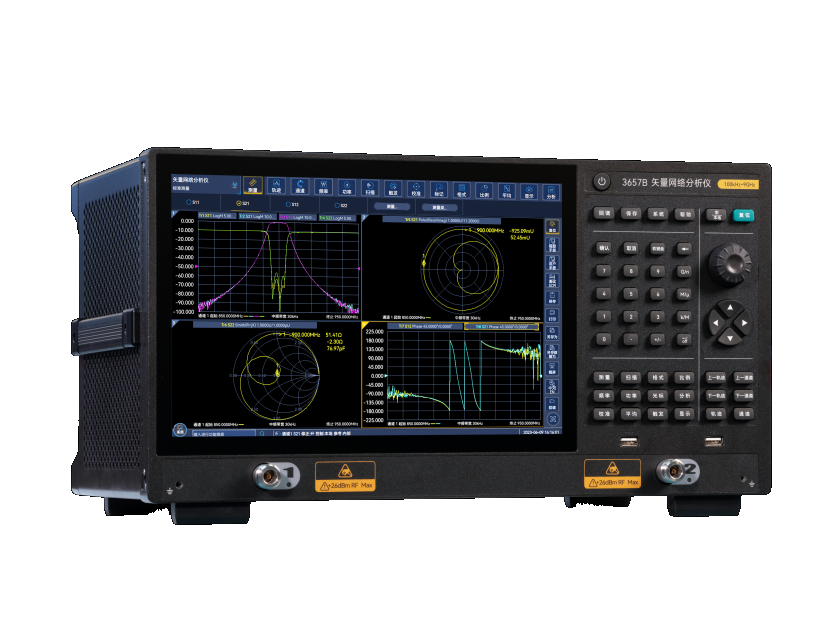

Ceyear 3657B Vector Network Analyzer (100kHz ~ 9GHz; 5U)

Frequency Range: 100 kHz to 9 GHz

Frequency Resolution: 1 Hz

Frequency Accuracy: ±5×10-6 (23°C ± 3°C)

Dynamic Range: Up to 140dB

IF Bandwidth: 1MHz – 2MHz

Number of Built-In Ports: 2-port (standard), 4-port (option)

Measurement Fields: Frequency domain and Time domain

Display Format: Logarithmic amplitude, linear range, standing wave, phase, group delay, smith chart, polar diagram

Power Supply: 50 Hz 220 V AC / 60 Hz 110 V AC

Power Consumption: 150 W

Display: 12.1-inch high brightness LCD

Dimension: 426 (W) × 221.5 (H) × 250 (D) mm

Weight: 13.5 kg

See more detail information in the Datasheet
