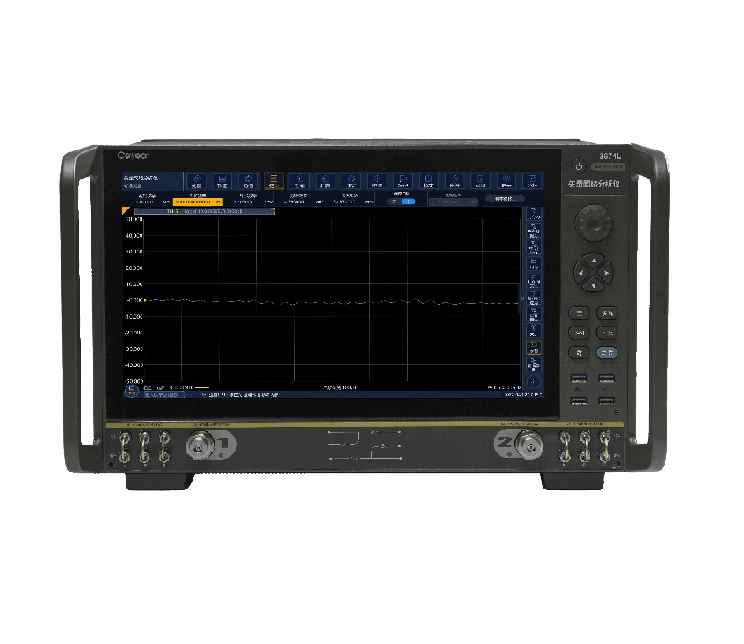

Ceyear 3674P Vector Network Analyzer (10MHz –110GHz)

Frequency Range : 500Hz/10MHz – 110GHz

Frequency Resolution: 0.1Hz

Harmonic Suppression: -13dBc (0.01 ~3.2 GHz), -25dBc (3.2~14GHz), -31dBc (14~55 GHz)

Power Range: 38dB @10GHz

Port Output Power: +11dBm@10GHz (maximum, standard)

Power Accuracy: ±1.0dB@10GHz

Effective Source Match: 29dB@10GHz

Effective Load Match: 29dB@10GHz

Reflection Tracking: ±0.0550dB@10GHz

Transmission Tracking: ±0.182dB@10GHz

Connector Type: 1.0mm (male)

Dimension

•   2-port: 475 (W) x 279 (H) x 560 (D) mm

•   4-port: 475 (W) x 279 (H) x 660 (D) mm

See more detail information in the Datasheet
