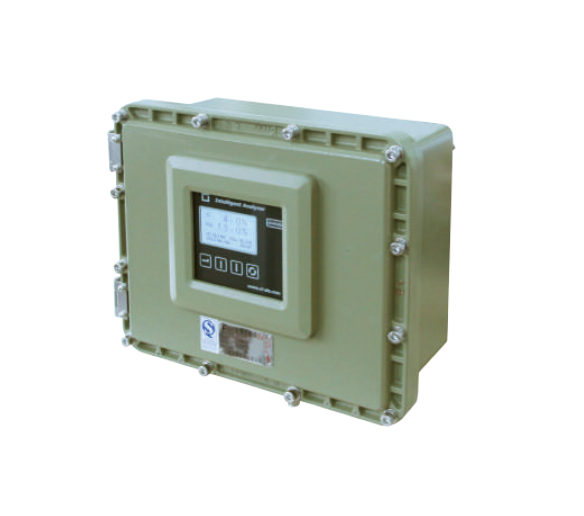

Chang AI CI-PC251 Explosion-proof two-component analyzer (0~10.0% CO, 0~30.0% CO2)

Detection principle: NDIR,Non-dispersive Infrared (Double Beam) Measurement

Scope of measurement: 0~10.0% CO,0~30.0% CO2

Accuracy: ±2%FS

Repeatability: ±1%FS

Zero drift: ±1%FS/7d

Range drift: ±1%FS/7d

Response time: T90<15s (500ml/min)

Display resolution: 0.1%

Measurements: online

Calibration cycle: One year (recommended)

Monitor: 128*64 LCD screen

Key: Four keys (touch keys)

Explosion-proof grade: Exd || CT6

Protection level: IP65

Power supply: 85~264VAC,50/60Hz

Power consumption of analyzer: Less than 20VA

Alarm: Alarm point:2(CO and CO2 concentration alarm). Relay Contact Capacity:24V DC,0.2A

Analog output signal: Number:2 groups (corresponding to CO and CO2, respectively). Output mode:4-20mA. Load:less than 500

Sensor life: More than 2 years (normal use)

Analyzer life: More than 5 years (normal use)

Environmental temperature: 5~45°C; Environmental humidity:Less than 80% RH

Sample flow rate: 500-1000ml/min

Sample pressure: Atmospheric pressure± 10% (outlet should be atmospheric pressure)
